Compact Motion Control Valves - Flow Control Valves - Flow regulator

VRFC2-VU

Description

A constant flow rate, regardless of system pressures, is established from E to R, while a minimum pressure differential of approximately 5 bar (70 psi) exists between the two ports. Output flow can be varied from zero (closed) to the nominal maximum rating. Free flow is permitted from R to E, regardless of valve adjustment, when pressure overcomes the spring bias of the check valve.

General:
Operating pressure:
  • up to 210 bar (3000 psi)
Q= max. inlet flow “E” port (see “Dimensions”):
Flow range adjustment:
  • 0 - 3 turns
Weight:
  • see “Dimensions”
Manifold material:
  • Note: Note: aluminium bodies are often strong enough for operating pressures exceeding 210 bar (3000 psi), depending from the fatigue life expected in the specific application. If in doubt, consult our Service Network.
  • Aluminium
Fluid:
  • Mineral oil (HL, HLP) according DIN 51524
Fluid temperature range:
  • -30 °C to 100 (-22 to 212 °F)
Viscosity range:
  • 5 to 800 mm²/s (cSt)
Recommended degree of fluid contamination:
  • Class 19/17/14 according to ISO 4406
Other technical data:
  • Note: Note: for applications outside these parameters, please consult us.
  • see data sheet 18350-50
RE18309-36-01(2023-10-27)

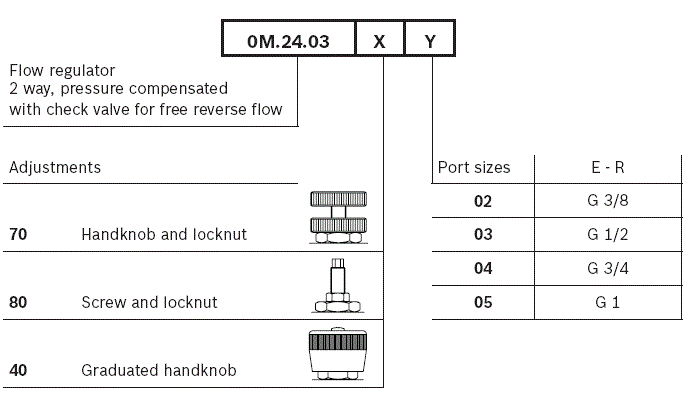

RE18309-36-order(2023-10-27)

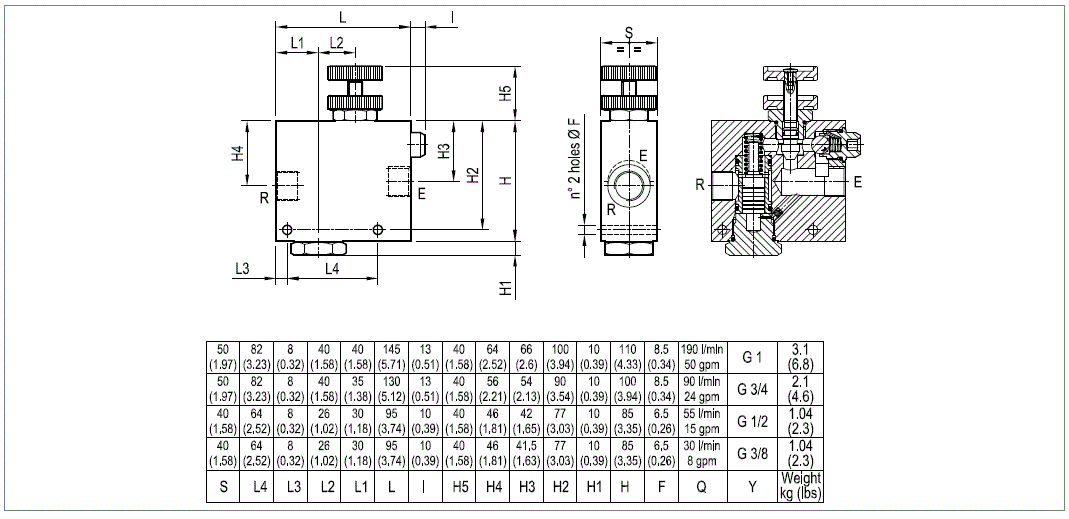

RE18309-36-dim(2023-10-27)
