Description

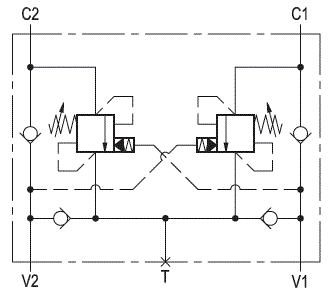

It provides static and dynamic motion control by regulating flow and pressure IN and OUT of the hydraulic motor at ports C1 and C2. When installed close to the motor, it can stop runaway in case of hose failure. The check sections allow free flow into the motor and prevent reverse movement; the pilot assisted relief valves control the movement when pilot pressure is applied. A system of check valves allows cross line relief; an optional make-up port (T) allows to compensate for any volume change.
Note: aluminium bodies are often strong enough for operating pressures
exceeding 210 bar (3000 psi), depending from the fatigue life expected in the
specific application. If in doubt, consult our Service Network.
