Electronic Controls - CAN Slaves

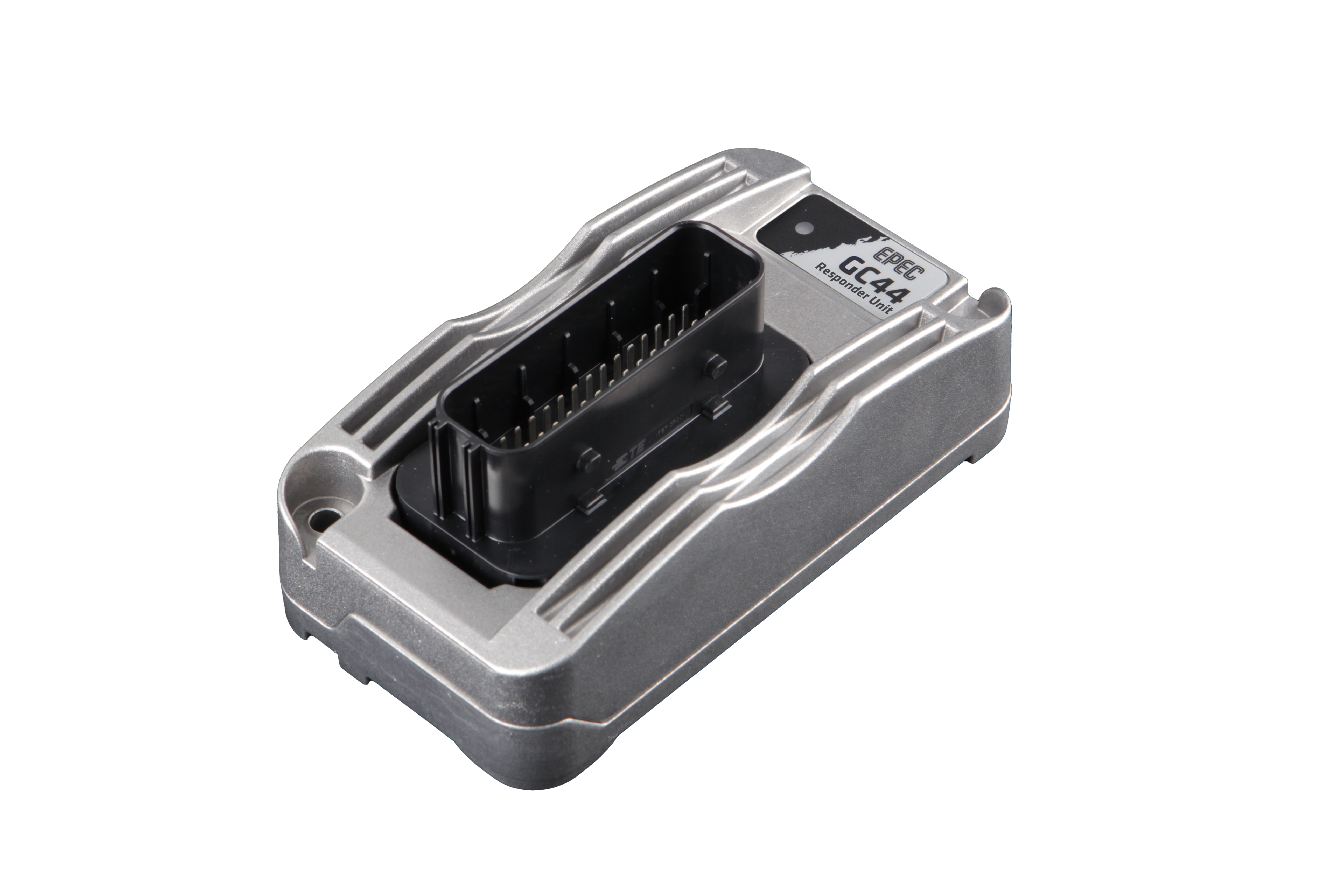

EPEC-GC44

Epec GC44 is a responder product for centralized control system architectures where one commander unit controls multiple responders.

Expand All|Collapse All
Processor:
  • 32 bit CPU
CAN ports:
  • 2
Total I/O:
  • 32 16 inputs, 16 outputs
IP class:
  • IP69
Temperature rating:
  • -40 to 85 °C (-40 to 185 °F)
Connectors:
  • 1 x LEAVYSEAL 46 pins
Supported CAN protocols:
  • CANopen
Indicators:
  • RGB diagnostic LED for quick status check and fault detection

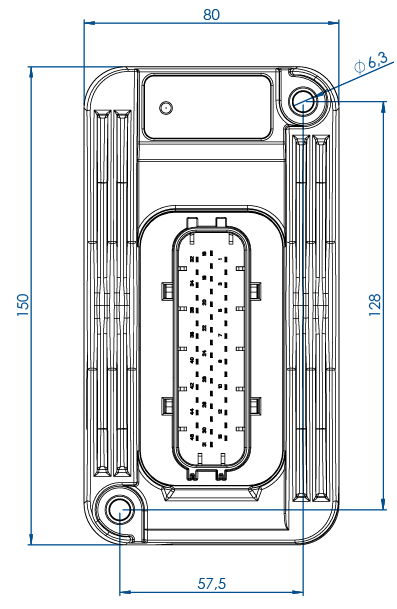

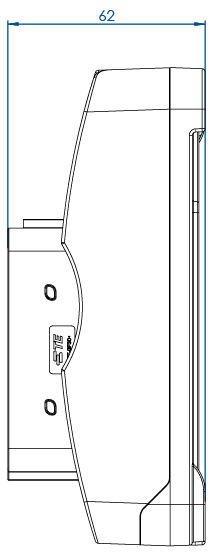

EPEC-GC44_dim1(2025-05-12) EPEC-GC44_dim2(2025-05-12)
Symbol/Name
Explanation
CE
This product complies with the requirements set in the CE Standard.
E17
This product is certified with normal automotive (E17) EMC (electromagnetic compatibility) standards.
RoHS2
This product complies with the RoHS directive (The Restriction of the use of certain Hazardous Substances in Electrical and Electronic Equipment).
AEF HW conformance*
This product has AEF HW conformance approval (AEF HW ID 000441)

* Only for ISOBUS product version E30E3606-23

Ordering code
4003087
4003088
EPEC model
E30SGC44-021
E30SGC44-022
CAN
2
2
5 V / 10 V REF
1
1
PWM/DO/CM
16
12
PWM / DO
—
4
AI / DI
10
10
AI / DI / PI
6
6
Coating
Painted
Suretec coating
