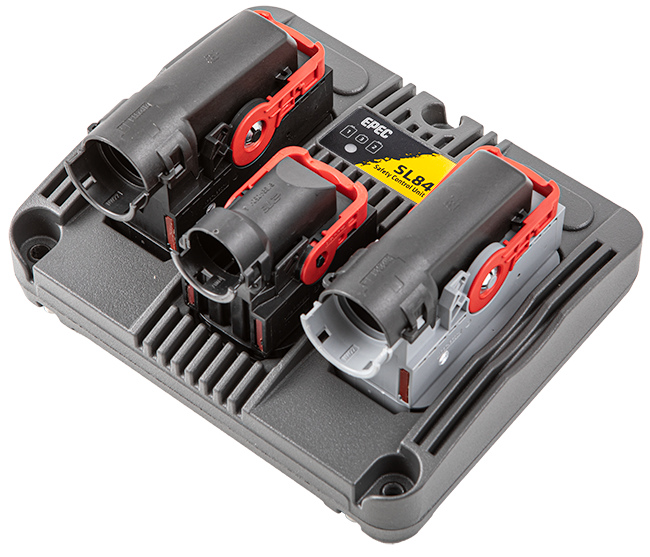

Epec SL84 is a Functional Safety Controller with optimized size vs. IO ratio. As a stand alone controller Epec SL84 is able to reach functional safety performance levels up to PL d Cat 2 and SIL 2.

Expand All|Collapse All

Overview

Description

SL84 is a general purpose controller intended for typical machine safety functions, for example prevention of unexpected movement or safety related stop-function. The unit is functional safety certified * up to performance level PLd Cat. 2 according to IEC 13849-1:2015 and SIL 2 according to IEC 61508:2010 and IEC 62061:2005.

SL84 is utilizing up-to-date safety technology with32-bit multi-core lockstep safety CPU and memory protection for the application. The unit is designed for extreme environments, the full aluminum enclosure and LEAVYSEAL connectors grants IP69k protection rating, shocks and vibrations up to 100G and excellent EMI / EMC performance.

Together with SL84 controller Epec offers a set of pre-certified safety libraries and SW tools to optimize customers machine time to market.

Safety performance up to SIL2 (IEC 61508:2010 and IEC 62061:2005) and PL d Cat. 2 (ISO 13849-1:2015), as a stand-alone controller :
Processor:
  • 32 bit multicore CPU with lock-step and memory protection
Flash memory:
  • 8 MB
RAM:
  • 512 kB
Non-volitile RAM:
  • 16 kB
PLCopen application size:
  • Up tp 1.8 MB
CAN ports:
  • 2
CAN wake-up:
I/O:
  • 69 35 inputs, 34 outputs
GND pins:
  • 26
Three power supply groups – Safety cut-off feature in a group of 10 PWM/DO outputs:
IP class:
  • IP69K
Temperature range:
  • -40 to 85 °C (-40 to 185 °F)
Connectors:
  • 1 x LEAVYSEAL 21 pins
  • 2 x LEAVYSEAL 46 pins
Programming:
  • CODESYS Ver 3.5 SP10
  • CODESYS V3 Safety SIL 2 programming
Supported CAN protocols:
  • CANopen
  • CANopen Safety
  • SAE J1939
CANopen Safety protocol for safety-related communication according to EN50325-5:
Extensive set of pre-certified PLCopen libraries for safety related applications:
Indicators:
  • Three-colored diagnostic LED for quick status check and fault detection

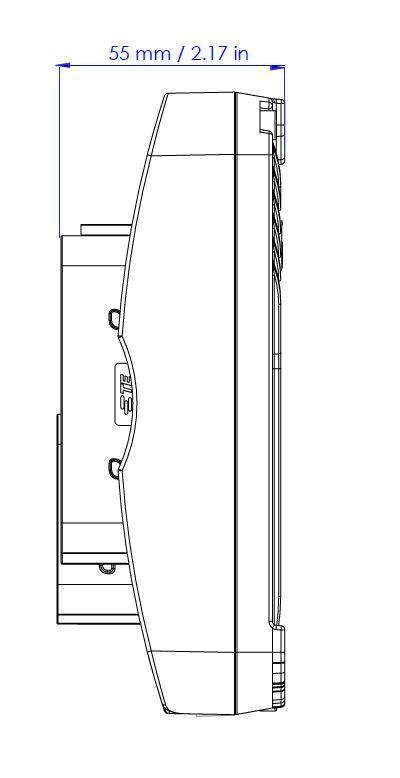

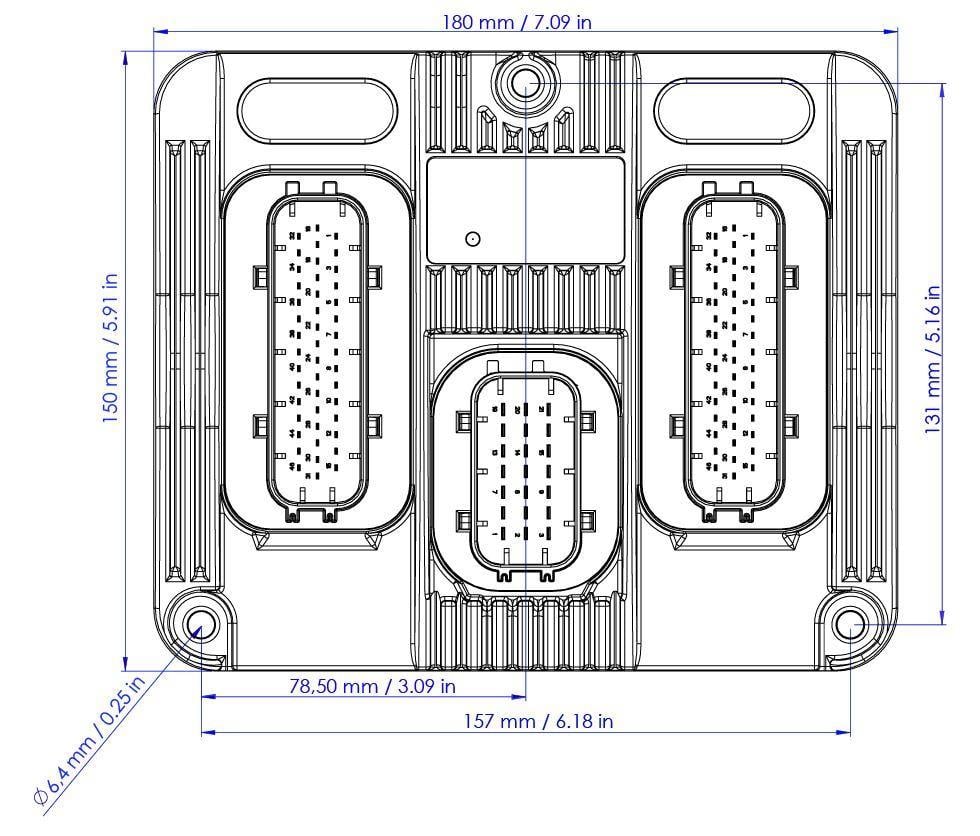

EPEC-SL84_dim1(2024-05-05) EPEC-SL84_dim2(2024-05-05)
Symbol/Name
Explanation
CE
This product complies with the requirements set in the CE Standard.
E17
This product is certified with normal automotive (E17) EMC (electromagnetic compatibility) standards.
RoHS2
This product complies with the RoHS directive (The Restriction of the use of certain Hazardous Substances in Electrical and Electronic Equipment).
EU declaration of conformity
This device is in compliance with Directive 2014/53/EU.<&>EpecSL84DeclarationOfConformity </&>
Functional Safety Certification
TÜV SÜD Certification and EC-Type examination no. Z10 003772 0003 Rev. 03 EN ISO 13849 Up to PL d, Cat 2 EN IEC 61508 Up to SIL 2 IEC 62061 Up to SIL 2 Certification also includes yearly Epec factory inspection
Ordering code
4002972
4002971
EPEC model
E30FSL84-020
E30FSL84-022
CAN ports
2
2
5 V REF
3
3
PWM / DO
20
20
DO 5 A
4
4
DO 3 A
8
8
DO (GND) 3 A
2
2
AI / DI
15
15
PI/DI
10
10
PI/DI (threshold 2,6 V)
10
10
