Electronic Controls - Remote Access

EPEC-6200

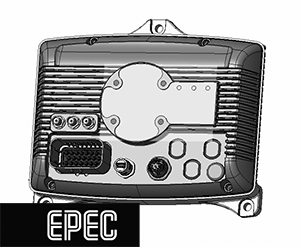

Epec 6200 Remote Access Unit is designed for remote connectivity, assistance systems and edge computing.

Overview

Description

Epec 6200 Remote Access Unit is designed for remote connectivity, assistance systems and edge computing. Epec 6200 has a wide range of communication interfaces and it is in a slim and leak-proof rugged aluminum housing. Three diagnostic LEDs offer you quick status information.

Epec 6200 has edge computing possibilities, such as local data processing, real-time capable applications and utilizing 3rd party Azure Edge modules. Local data processing also enables optimizing and managing the data amounts to be transferred to remote management solutions.

Together with Epec’s IoT Services you’ll get the fastest to configure and most reliable IoT system/remote management solution in the market.

In case there is an occasional need for graphical interface in the machine, with Epec 6200 and WebVisu solution you can use for example a smart phone as temporary HMI when the machine is running.

Available country approvals of Epec 6200 RAU:

  • Europeincluding Turkey and Serbia
  • Australia and New Zeeland
  • USAincluding Puerto Rico, Canada
  • Chile, Colombia, Uruguay, Paraquay
  • Indonesia, India, Japan
  • Saudi-Arabia
  • South Africa, Ghana, Tanzania, Zambia, Zimbabwe, Mali
  • In progress: China, Brazil, Mexico, Peru
  • + 20 other counties on roadmap including for example Argentina, South-Korea, Malesia, Thailand, Vietnam, Philippines etc.

Operators: Telia, Tele2, AT&T, Verizon in progress

Processor:
  • 32 bit CPU
Flash memory:
  • 4 GB
  • 32 GB
RAM:
  • 1024 MB
CAN ports:
  • 6
Ethernet ports:
  • 2
USB ports:
  • 1
RS-232 ports:
  • 1
Wireless network technologies:
  • GSM/UMTS/HSPA+/LTE
Wifi:
  • WLAN
Location services:
  • GPS
  • GLONASS
  • BeiDou/Compass
  • Galileo
  • QZSS
Total I/O:
  • 5 3 inputs / 2 outputs, or 5 inputs/0 outputs
IP Class:
  • IP67
Temperature range:
  • -30 to 60 °C (-22 to140 °F)
Connectors:
  • 1 x AMP23, 2 x M12, 3 x SMA
Programming:
  • CODESYS version: 3.5
Supported communication protocols:
  • CANopen
  • SAE J1939
  • MODBUS
  • NMEA 2000
Indicators:
  • 3 two-colored diagnostic LED for quick status check and fault detection

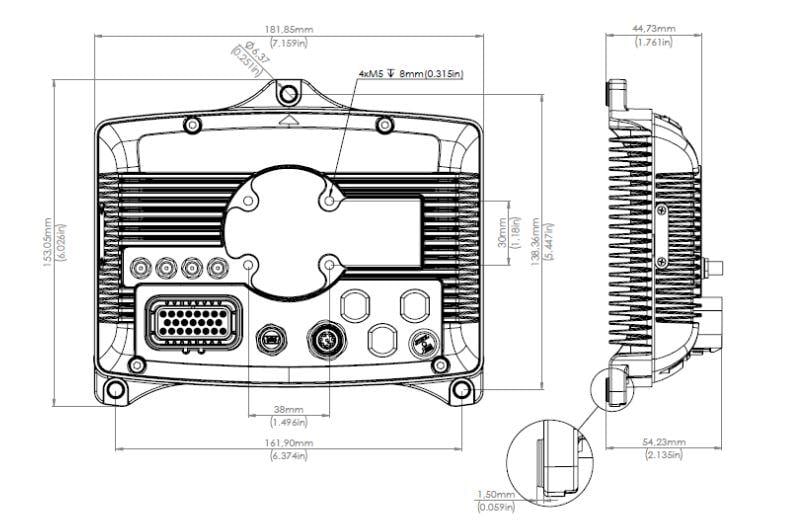

EPEC-6200_dim(2025-05-12)
Symbol/Name
Explanation
CE
This product complies with the requirements set in the CE Standard.
E17
This product is certified with normal automotive (E17) EMC (electromagnetic compatibility) standards.
RoHS2
This product complies with the RoHS directive (The Restriction of the use of certain Hazardous Substances in Electrical and Electronic Equipment).
FCC
This device is authorized under the SDoC procedure and has the option to use the FCC logo to indicate compliance with the FCC rules.
RCM
This product complies with the ACMA (Australian Communications and Media Authority) regulatory arrangements concerning electromagnetic compatibility and radio equipment.
Radio Equipment Directive
Epec 6000 series units comply with Radio Equipment Directive (2014/53/EU).
EU declaration of conformity
This device is in compliance with Directive 2014/53/EU. For more information, refer to the product's technical manual.
