Electronic Vehicle Controls - Remote Access

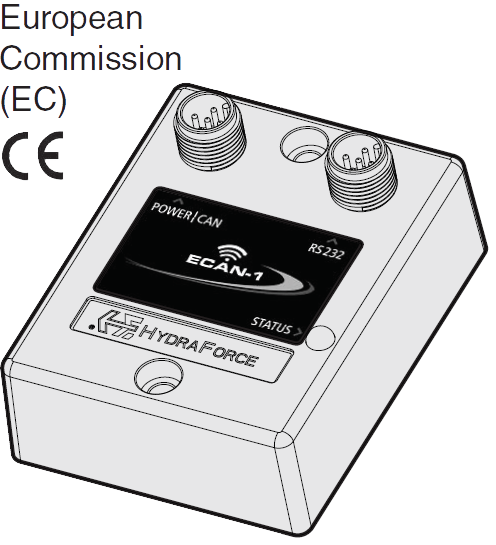

ECAN-1

Wireless CAN bus interface

Overview

Description

The ECAN-1 is a multi-functional wireless CAN interface with an integrated antenna. The device provides access to the CAN data of a vehicle or machine in various operating modes. With this device, you can transmit and receive CAN data via a WLAN connection. It can also be used as a CAN to CAN bridge or a CAN wireless interface.

Operation

When used in interface mode, the ECAN-1 transmits CAN data to other WLAN devices, such as a PC. It will work with both HF-Impulse and CoDeSys configuration software. When used as a CAN to CAN bridge, the ECAN-1 provides wireless transmission of CAN data between two ECAN-1 wireless devices, i.e. as a substitute for CAN cables in drag chains or with remote control units.

Features

  • Choice of functional modes
  • Compact size
  • Rugged, impact-resistant and moisture-resistant IP67-rated enclosure designed for use in outdoor hydraulic equipment applications

Ratings

Electrical Parameters
Supply voltage:
  • 8 to 32 Vdc
Memory:
  • 1024 kB/16kB
Properties
Weight:
  • 0.06 kg (0.13 lb)
Enclosure material:
  • ULTRAMID® C3U BK 23079 PA6/66 FR
Connectors:
  • M12 5-pin (mates with M12 A-coded 5-pin female)
Diagnostic indicator:
  • Bi-color red/green LED
Environmental Ratings
Ingress protection class:
  • IP67 With all connectors plugged in or suitably capped
Network
CAN interface:
  • ISO 11898-2 HIGH SPEED, 2.0 A/B
WLAN:
  • IEEE 802.11 A/B/G/N, IEEE 802.11 D/E/I/H, DUAL BAND: 2.4 GHz / 5 GHz
WLAN Security:
  • WPA2-PSK, WPA-PSK, WEP64, WEP128, PEAP
WLAN Range:
  • 75 m (250 ft)
Certifications:
  • CE, FCC, E1 THE DEVICE DOES NOT COMPLY WITH DIRECTIVE 2014/34/EU AND MUST THEREFORE NOT BE USED IN POTENTIALLY EXPLOSIVE ENVIRONMENTS. FOR DETAILED SPECIFICATIONS

Dimensions

ECAN-1_Dim

To Order

ECAN-1: Part No. 4002768

Mating connector: M12 A-coded Part No. 4001953
