ELD-6107A/B

178 mm (7 in) Display with cellular or WLAN connectivity

Overview

Description

The ELD-6107A/B display unit is a high-performance and rugged full-color touch screen display designed for mobile machinery. The ELD-6107 is available with cellular(A) or WLAN(B) connectivity and is fully compatible with the existing ECU-XXXX product portfolio.

Features

  • A multifunction display unit / controller with 32 bit processor, high calculating power, and included internal Graphics Processing Unit (GPU).
  • Provides control system solutions for both centralized and distributed intelligence systems.
  • Can function as electronic contrtol unit and/or as remote access unit to provide access to internet services such as GatE and GlobE.
  • CoDeSys™ 3.5 programming.
  • High brightness and contrast offers an excellent readability even in direct sunlight.
  • Robust, light, and leak proof aluminum housing has been widely tested against different chemicals and environmental conditions.
  • Based on PLCopen and CANopen, which make them easily scalable to meet requirements for both small and large machines.
  • Open I/O and communication interface makes it possible to connect sensors, actuators, joysticks, and other devices.
  • Internal diagnostics which makes it possible to detect overvoltage and overtemperature conditions and program customized log applications.
Electrical Parameters
Supply voltage:
  • 8.4 to 36 Vdc
Power consumption:
  • 13 W (+24 Vdc, idle),
  • 100 W (+24 Vdc, full load)
Reference voltage output:
  • +5 Vdc
Processor and Memory
Processor:
  • 32-bit CPU, 792 MHz, includes internal GPU
Flash memory:
  • 4 to 16 GB
RAM:
  • 1024 MB DDR3
Non-volatile memory:
  • 512 kB
Operating system:
  • Linux
Programming:
  • CoDeSys 3.5
Diagnostics:
  • Supply voltage
  • Unit temperature
  • Software cycle time
  • REF voltage monitoring
Properties
Weight:
  • 1.1 kg (2.4 lb)
Enclosure material:
  • Aluminum
Connectors:
  • 1x AMP23
  • 1x mini USB M12
  • 2 to 4x M12
  • 0 to 2 SMA antenna connector
Other features:
  • RTC real-time clock with battery
  • Speaker
Environmental Ratings
Ingress protection class:
  • IP65
Operating temperature:
  • -30 to 55 °C (-22 to 131 °F) ELD-6107A (Cellular network)
  • -30 to 60 °C (-22 to 140 °F) ELD-6107B (WLAN network)
Storage temperature:
  • -40 to 80 °C (-40 to 176 °F)
Ingress protection class:
  • IP65
Network
Communications interfaces:
  • 2x CAN 2.0B AMP 23
  • RS-232 serial AMP 23
  • 2x USB Amp 23 full speed (12 Mbps for application download only), M12 miniB-USB high speed (480 Mbps)
  • Ethernet M12 (8 pin)
  • GSM/UMTS/HSPA+ ELD-6107A
Geolocation:
  • GPS/GLONASS
Camera input:
  • 2x M12 (12 pin)
Display
Display size and type:
  • 178 mm (7 in) TFT color LCD
Touch screen:
  • Resistive GFG (Glass-Film-Glass) The surface of the touch screen is made of thin hardened glass with anti-glare treatment
Resolution:
  • WVGA 800 X 480 (5:3)
Number of colors:
  • High color, 65,536 colors: 5 bits red, 6 bits green, 5 bits blue (16 bits)
Backlight:
  • LED (lifetime 70,000 hours at 25 °C)
Display panel brightness:
  • 800 cd/m²
Display panel contrast:
  • 600:1
Viewing angle:
  • 170° (super wide)
Brightness control:
  • Automatic/manual LED backlight control
Flexible I/O Pins
DO/DI:
  • 2 Sourcing up to 1 A
AI/DI:
  • 1 Pull-down to GND
DI:
  • 2 0 to 5 V / 0 to 22 mA and pull-up selection by application

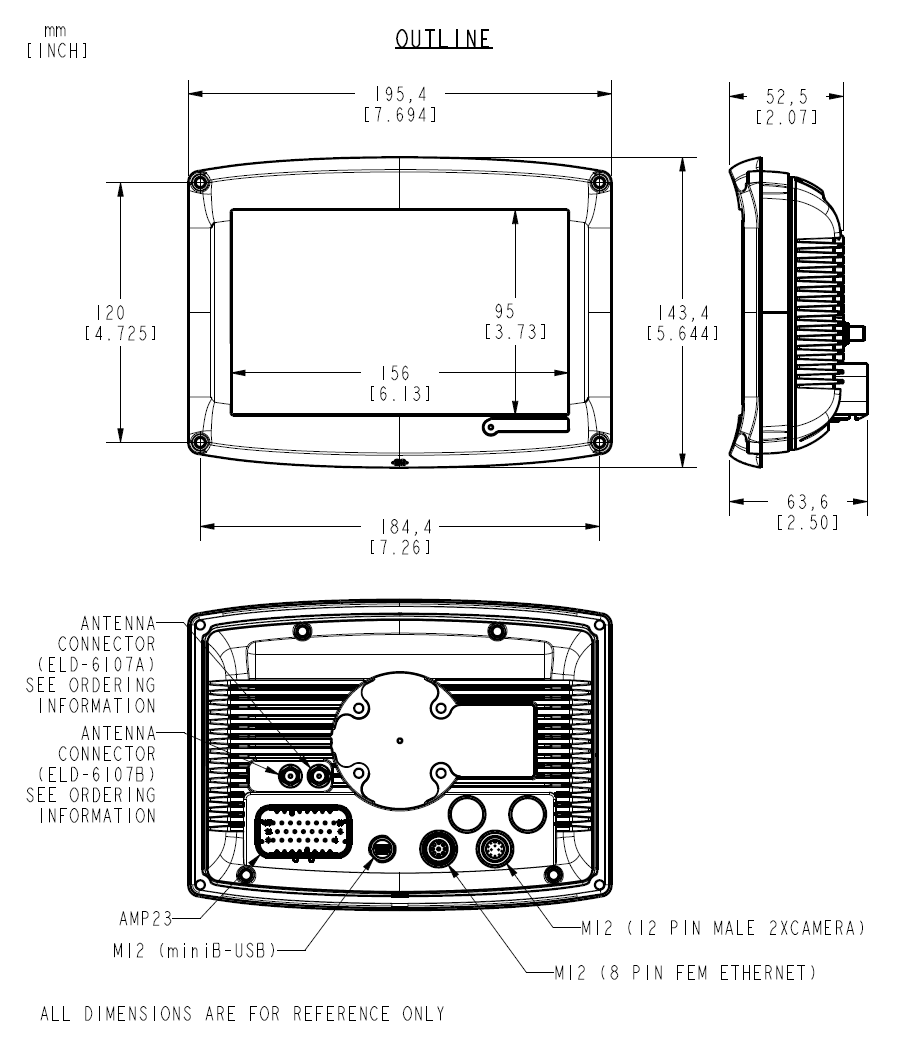

ELD-6107_Dim

ELD-6107A: (Cellular connectivity) Part No. 4002856

ELD-6107B: (WLAN connectivity) Part No. 4002857

Mating connector: 23-pin AMPseal Part No. 4000360
