ESDR-0201A controller two output, one input, closed-loop PID control

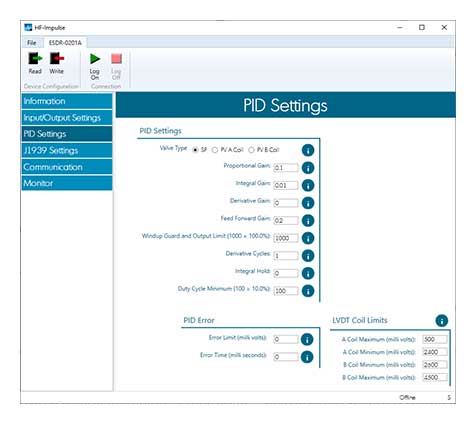

the ESDR-0201A is a compact plug-in style, microprocessor based, closed-loop PID valve driver designed for use in hydraulic proportional valve applications. The controller receives a command via CAN bus and drives the two outputs through a pid loop receiving feedback signal from the 0-5 V input. a 5 Vdc reference output (250 mA) is provided for powering an external sensor. The ESDR-0201A is designed to work with hydraforce proportional valves with integrated LVDT position sensor, however it can function as a stand-alone PID control. PID tuning parameters are configurable using HF-Impulse software: an easy-to-use, web-accessible configuration tool available as a free download at www.hydraforce.com/electronics.

Diagnostic Features

  • Any supply voltage below 8.5 Vdc causes the controller to default to the valve-off mode.
  • The driver output drops and holds at the inactive stand-by condition.
  • Any short or open circuit condition is automatically detected as an error.
  • When the fault is corrected, the controller returns to standard operation.
Electrical Parameters
Power supply:
  • 9 to 32 Vdc Nominal 12 and 24 Vdc systems
Reference output voltage:
  • 5.5 Vdc 200 mA
Processor and Memory
  • ARM 32-bit Cortex™-M3 CPU, 72 MHz
Flash memory:
  • 64 kB
RAM memory:
  • 20 kB
  • 2x Output LED (red)
Protection functions:
  • Over-voltage protection, short-circuit protection for outputs
Interface software:
  • HF-Impulse ver 1.15 or greater
Software installation:
  • Download via CAN J1939
Protection class:
  • IP69K

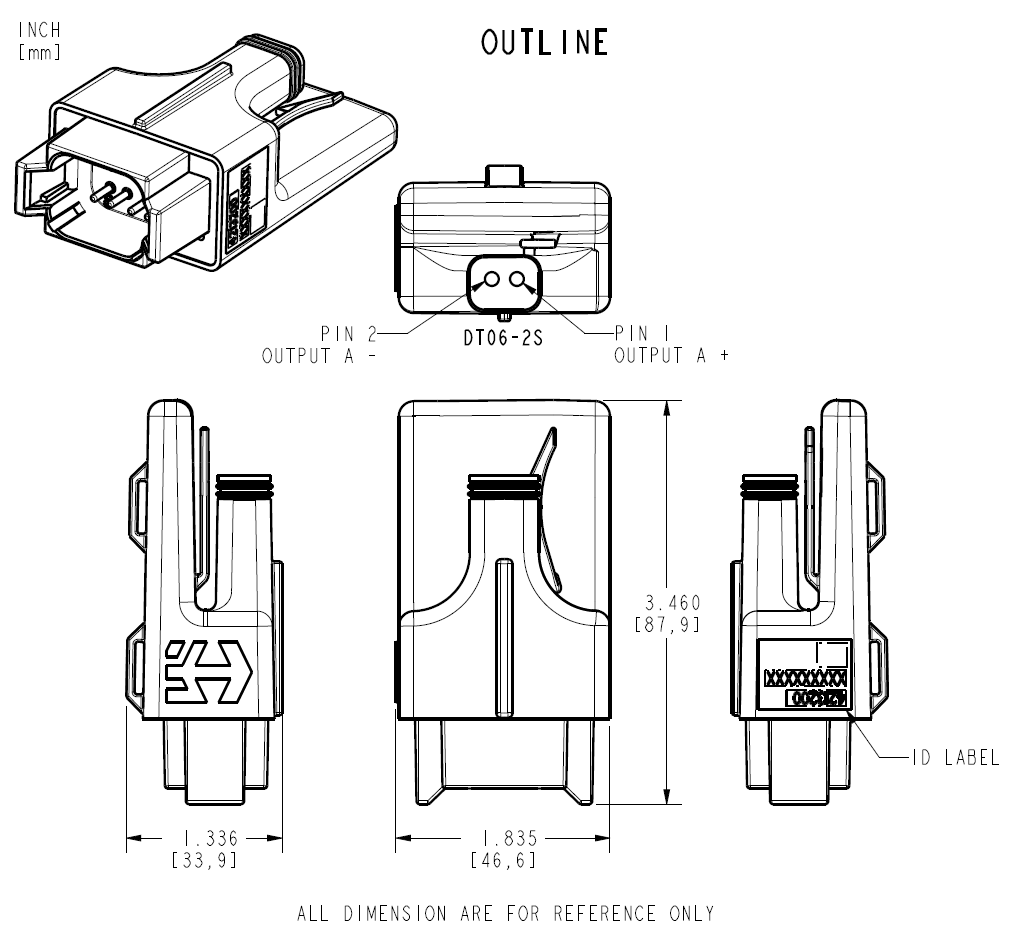

Unit weight:
  • 0.072 kg (0.159 lb) without connectors
Case material:
  • Noryl plastic
Operating temperature:
  • –40 to 85 °C (–40 to 185 °F)
Storage temperature:
  • –40 to 85 °C (–40 to 185 °F)

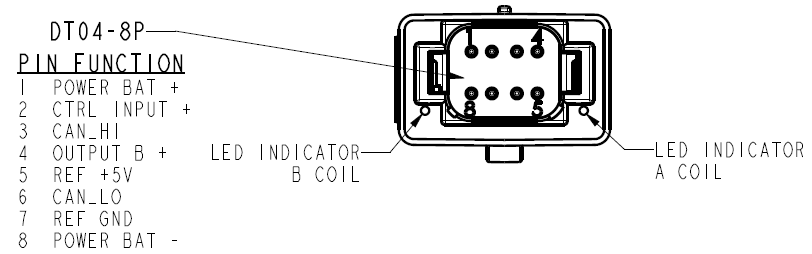

Mating connectors:
  • Deutsch DT06-8S
  • DT04-2P
  • 1 X CAN 250 kbps / 500 kbps
  • 1X voltage input 0 to 5 Vdc
  • 2X PWM sourcing 2 A continuous, 40 to 400 Hz

ESDR-0201A controller: Part No. 4213200

Configuration Software: HF-Impulse (Free download from www.hydraforce.com/electronics).

DT06-08S Connector Kit: Part No. 4001955

LVDT Harness: Part No. 4002916 (For use with LVDT position sensor)

USB-CAN Programming Adapter: Kvaser Leaf Lite HS — Part No. 4000371, also available from www.kvaser.com

Reference information

Available for from www.hydraforce.com/electronics

Startup guide: 7709132

Technical reference: 7709109
