Manifolds and Plates - Line Mount - Needle Restrictor

ST-C-C

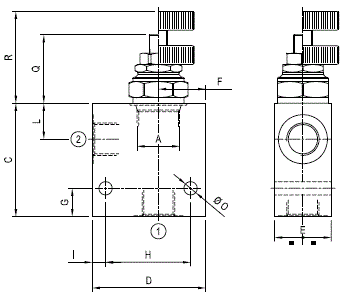

RE18331-02-dim(2023-11-24)
RE18331-02-01(2023-11-24)

To order only manifold see data sheet RE 18325-85

General
Max flow:
  • up to 150 l/min (39 gpm)
Max operating pressure for steel body:
  • 350 bar (5000 psi)
Max operating pressure for aluminium body:
  • 210 bar (3000 psi)
Cavity
Y
PORT SIZE
Rated Flow l/min (gpm)
DIMENSIONS mm (Inches)
A
1 - 2

C
D
E
F
G
H
I
L
M
N
O
Q
R
SIZE08





























SIZE 10
03
G 1/2

up to 70 (19)
60(2.36)
60(2.36)
35(1.38)
25(0.98)
15(0.59)
45(1.77)
7.5(0.30)
19(0.75)


7(0.28)
38(1.5)
50(1.97)
04
G 3/4

60(2.36)
70(2.76)
40(1.58)
30(1.18)
15(0.59)
55(2.17)
7.5(0.30)
20(0.79)


9(0.35)
SIZE 12
04
G 3/4

up to 150 (39)
75(2.95)
80(3.15)
40(1.58)
35(1.38)
20(0.79)
60(2.36)
10(0.39)
26.5(1.04)


9(0.35)
34(1.34)
44(1.73)
05
G 1

75(2.95)
80(3.15)
50(1.97)
35(1.38)
20(0.79)
60(2.36)
10(0.39)
26.5(1.04)


9(0.35)
SIZE 16
04
G 3/4

up to 150 (39)
80(3.15)
80(3.15)
50(1.97)
32(1.26)
22(0.87)
60(2.36)
10(0.39)
26(1.02)


9(0.35)
33(1.3)
43(1.69)
05
G 1

80(3.15)
90(3.54)
50(1.97)
37(1.46)
22(0.87)
60(2.36)
20(0.79)
26(1.02)


9(0.35)
SIZE 20

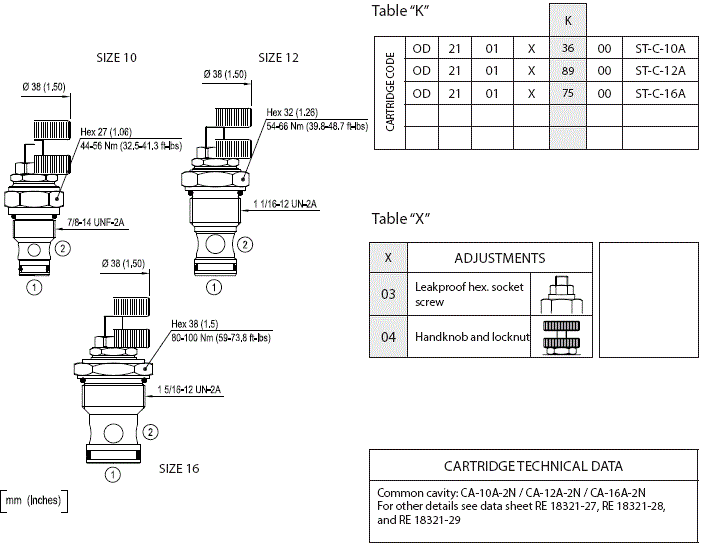

RE18331-02-02(2023-11-24)

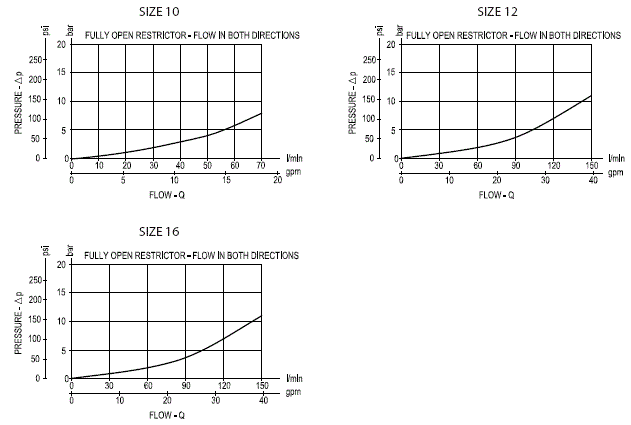

RE18331-02-03(2023-11-24)

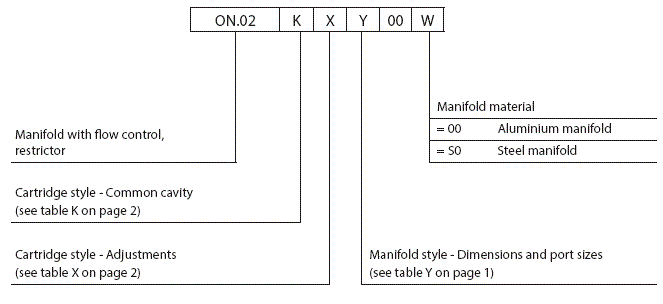

RE18331-02-order(2023-11-24)
