Manifolds and Plates - Line Mount - 2-ways

VEDT-CS-16-08A-NC

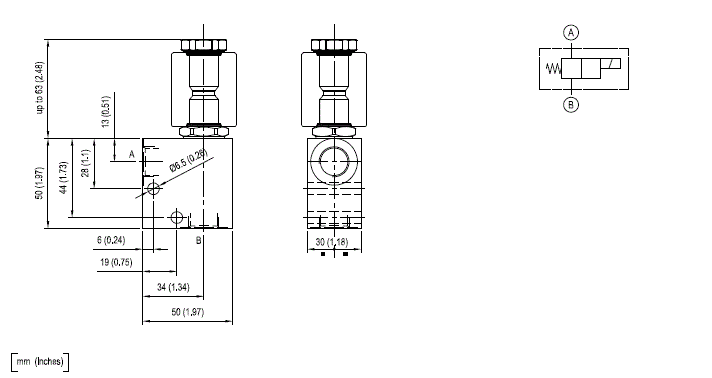

RE18331-69-01(2023-11-24)
General
Max. flow:
  • up to 15 l/min (4 gpm)*
Max. operating pressure for steel body:
  • 250 bar (3625 psi)
Max operating pressure for aluminium body:
  • 210 bar (3000 psi)
Fluid Temperature:
  • -30 to 90 (-22 to 194)
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm²/s (cSt):
MTTFd:
  • 150 years see RE 18350-51
To order manifold only, see data sheet RE 18325-85:
Other technical data:
  • Note: * see performance graph on page 3
  • See data sheet 18350-50

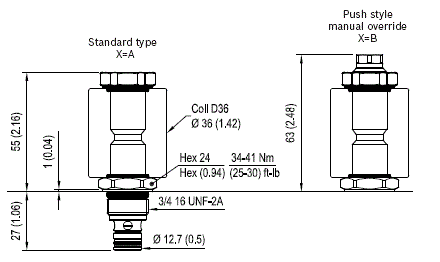

RE18331-69-02(2023-11-24)
General
Installation orientation:
  • Unrestricted
Fluid Temperature:
  • -30 to 90 (-22 to 194)
Hydraulic
Max. operating pressure:
  • 250 bar (3625 psi)
Flow range:
  • up to 15 l/min (4 gpm)
Max. internal leakage:
  • 5 drops/min.
Fluid temperature range:
  • -20 to 80 °C (-4 to 176 °F)
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm²/s (cSt):
Installation torque:
  • 34 - 41 Nm (25 - 30 ft-lbs)
Recommended degree of fluid contamination:
  • Nominal value max. 10 µm (NAS 8) ISO 4406 19/17/14
MTTFd:
  • 150 years see RE 18350-51
Cavity:
  • CA-08A-2N see data sheet 18325-70
Other technical data:
  • See data sheet 18350-50
Electrical
Type of voltage:
  • DC voltage
Coil type:
  • D36
Supply voltage:
  • See data sheet 18325-90
Admitted voltage tolerance: see characteristic curves and table:
Power consumption:
  • 20 W
Type of protection:
  • Note: Note: Coils must be ordered separately
  • See data sheet 18325-90

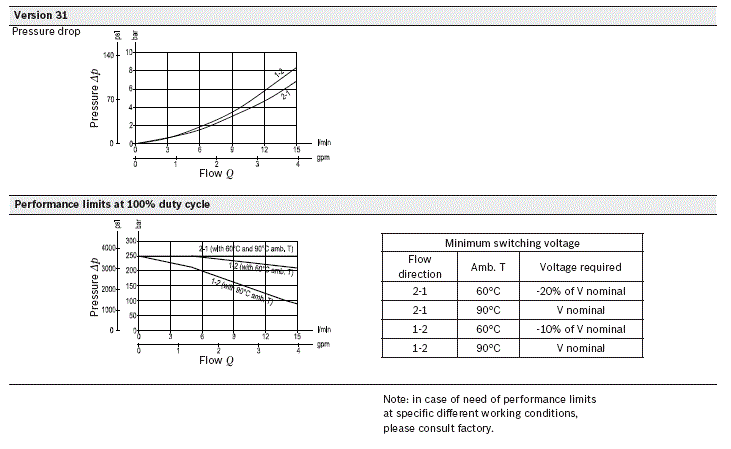

RE18331-69-03(2023-11-24)

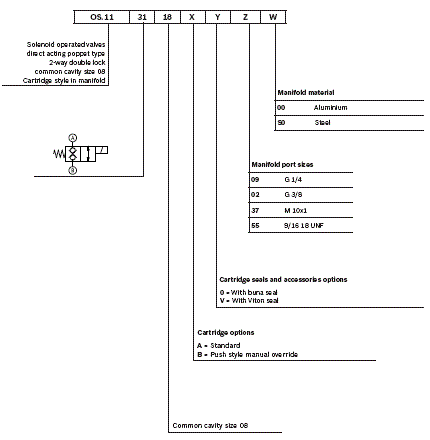

RE18331-69-order(2023-11-24)
