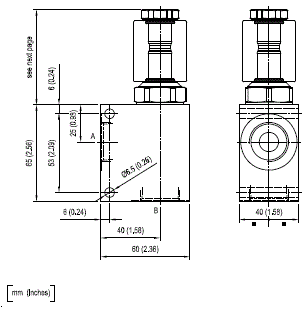

Manifolds and Plates - Line Mount - 2-ways

VEI-CS-16-017

Expand All|Collapse All
RE18331-63-02(2023-11-24)
RE18331-63-03(2023-11-24)
General
Max. flow:
  • up to 70 l/min (18 gpm)
Max. operating pressure for steel body:
  • 350 bar (5000 psi)
Max operating pressure for aluminium body:
  • 210 bar (3000 psi)
Fluid Temperature:
  • -30 to 90 (-22 to 194)
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm²/s (cSt):
MTTFd:
  • 150 years see RE 18350-51
To order manifold only, see data sheet RE 18325-85:
Other technical data:
  • See data sheet 18350-50
General
Installation orientation:
  • Unrestricted
Fluid Temperature:
  • -30 to 90 (-22 to 194)
Hydraulic
Max. operating pressure:
  • 350 bar (5000 psi)
Flow range:
  • 2 - 70 l/min (0.53 - 18 gpm)
Max. internal leakage:
  • 20 drops/min.
Switching time:
  • Opening ≤ 50 ms
  • Closing ≤ 100 ms
Fluid temperature range:
  • -20 to 80 °C (-4 to 176 °F)
Fluids: Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm²/s (cSt):
Installation torque:
  • 54 - 66 Nm (40 - 49 ft-lbs)
Recommended degree of fluid contamination:
  • Nominal value max. 10 µm (NAS 8) ISO 4406 19/17/14
MTTFd:
  • 150 years see RE 18350-51
Special cavity:
  • 017-E see data sheet 18325-75
Other technical data:
  • See data sheet 18350-50
Electrical
Type of voltage:
  • DC voltage
Coil type:
  • D36
Supply voltage:
  • See data sheet 18325-90
Label Needed:
  • See characteristic curve
Power consumption:
  • 20 W
Type of protection:
  • Note: Note: Coils must be ordered separately
  • See data sheet 18325-90

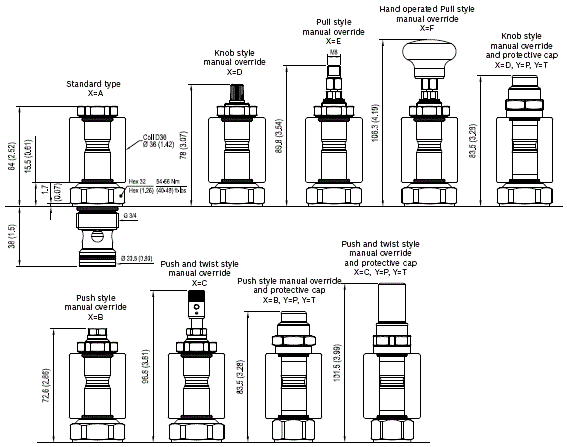

Manual override options (X)
Seal and prot. cap. (Y)

A
B
C
D
E
F
0
K=all versions
K=02; K=06 K=12; K=32
K=02; K=06 K=12; K=32
K=01; K=05 K=11; K=31 K=03
K=01; K=05 K=11; K=31 K=03
K=01; K=05 K=11; K=31 K=03
V
K=all versions
K=02; K=06 K=12; K=32
K=02; K=06 K=12; K=32
K=01; K=05 K=11; K=31 K=03
K=01; K=05 K=11; K=31 K=03
K=01; K=05 K=11; K=31 K=03
P
/
K=02; K=06 K=12; K=32
K=02; K=06 K=12; K=32
K=01; K=05 K=11; K=31 K=03
/
/
T
/
K=02; K=06 K=12; K=32
K=02; K=06 K=12; K=32
K=01; K=05 K=11; K=31 K=03
/
/

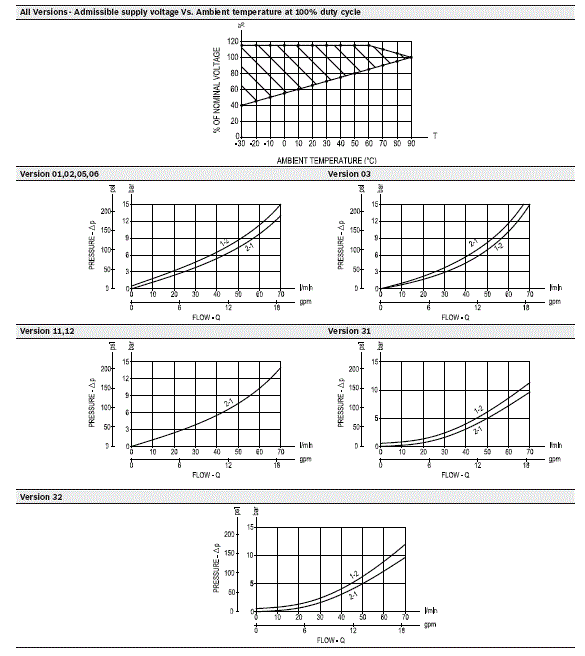

RE18331-63-04(2023-11-24)

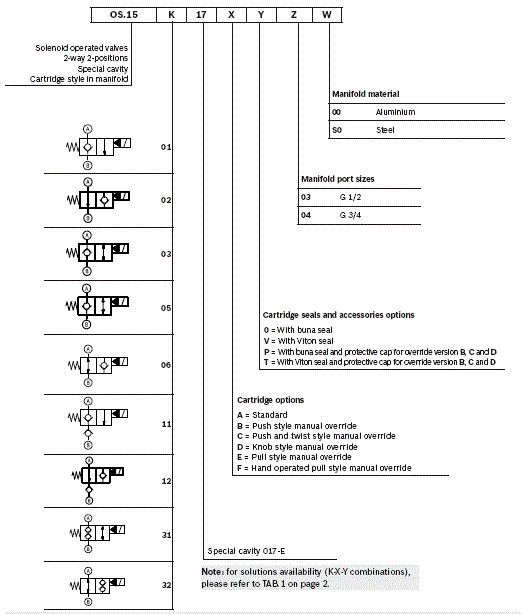

RE18331-63-order(2023-11-24)
