Manifolds and Plates - Line Mount - 2-ways needle Restrictor + relief
VEI16-VU-VSP15020-ST-09

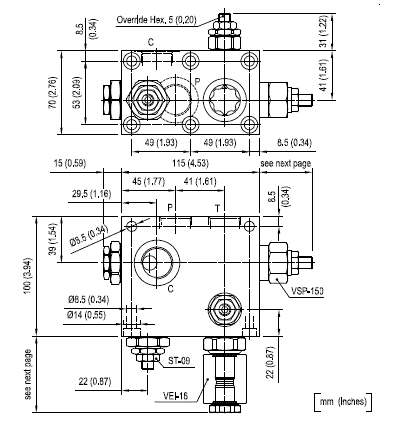

Dimensions

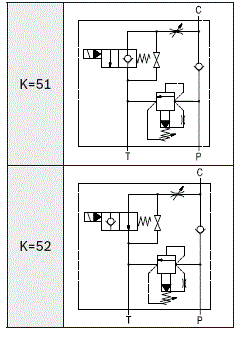

Configurations available (K)

Technical data
General:
Max. flow:
- up to 70 l/min (19 gpm)
Max. operating pressure:
- 210 bar (3000 psi)
Standard manifold in high strength aluminium.For working pressure up to 350
bar (5000 psi) and for fatigue applications with any working pressure, steel
manifolds are available upon request.:
Weight:
- 2.6 kg (5.7 lbs)
Fluids:
- Mineral-based or synthetics with lubricating properties at viscosities of 20 to 380 mm²/s (cSt)
This integrated circuit contains one relief valve type VSP-150 operating
from P to T and one solenoid valve type VEI-16-:
Other technical data:
- See data sheet 18350-50

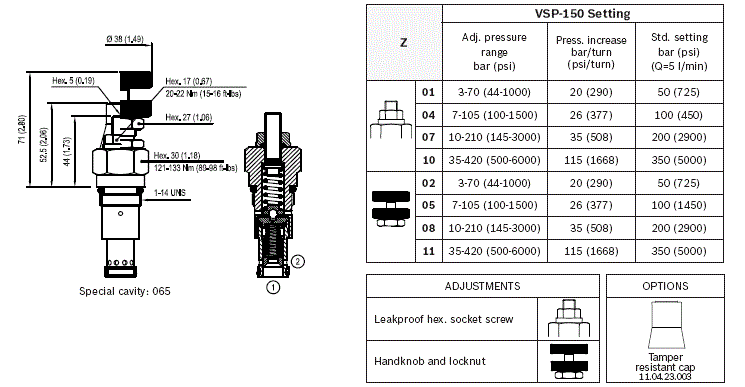

Cartridge valve VSP-150

Solenoid cartridge valve VEI-16-08A

TAB. 1

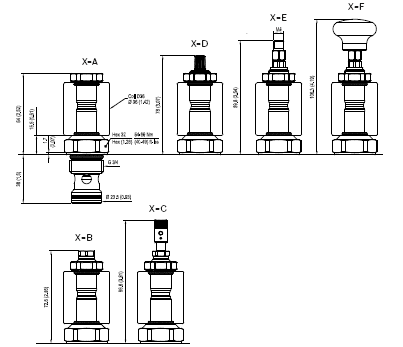

Manual override options (X)
Seal and prot. cap. (W)
A
B
C
D
E
F
0
K=51K=52
K=52
K=52
K=51
K=51
K=51
V
K=51K=52
K=52
K=52
K=51
K=51
K=51
P
/
K=52
K=52
K=51
/
/
T
/
K=52
K=52
K=51
/
/
Technical data
Note: Coils must be ordered separately
General:
Installation orientation:
- Unrestricted
Fluid Temperature:
- -30 to 90 (-22 to 194)
Hydraulic:
Max. operating pressure:
Flow range:
Max. internal leakage:
Switching time:
Fluid temperature range:
Fluids: Mineral-based or synthetics with lubricating properties at
viscosities of 20 to 380 mm²/s (cSt):
Installation torque:
- 54 - 66 Nm (40 - 49 ft-lbs)
Recommended degree of:
- Nominal value max. 10 µm
fluid contamination:
- (NAS 8) ISO 4406 19/17/14
MTTFD:
- 150 years (see 18350-51)
Special cavity:
- 017-E (see 18325-75)
Other technical data:
- See data sheet 18350-50
Electrical:
Type of voltage:
- DC voltage
Coil type:
- D36
Supply voltage:
- See data sheet 18325-90
Label Needed:
- See characteristic curve
Power consumption:
- 20 W
Type of protection:
- See data sheet 18325-90

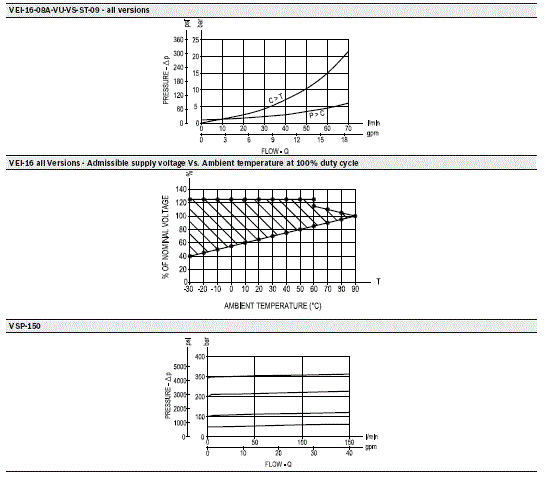

Characteristic curves

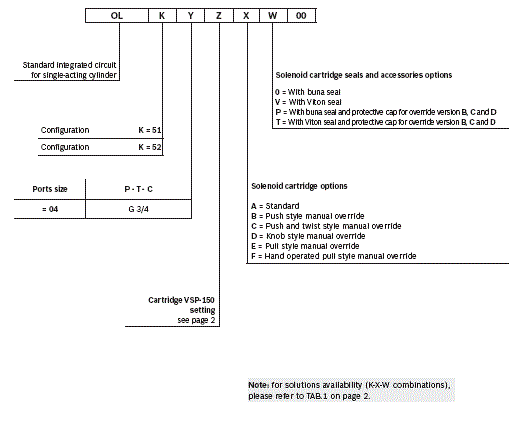

Ordering code
