Sleeve for Line Mounting - Directional Control Valves - Check

VU-MF (G 1-G 1-1/4)

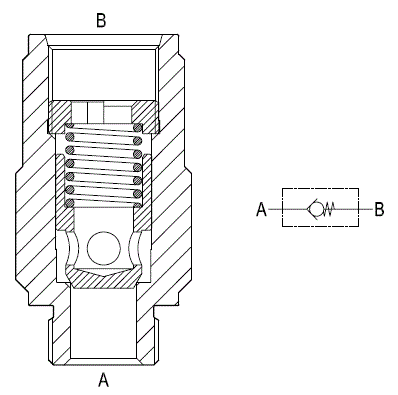

RE18316-37-01(2023-11-01)
RE18316-37-02(2023-11-01)

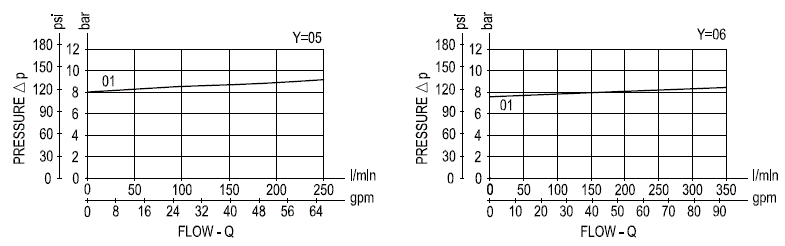

Δp curves vs. flow in “A-B” free flow direction

For cracking pressure range refer to the specific table.

Description

Flow is always allowed to pass from A to B when pressure at A rises above the spring bias pressure and the poppet is pushed from the seat.

The valve is normally closed (checked) from B to A. Precision machining and hardening processes allow virtually leak free performance in the checked condition.

General:
Ports:
  • Pressure P max bar (psi)
G 1:
  • 350 (5000)
G 1-1/4:
  • 350 (5000)

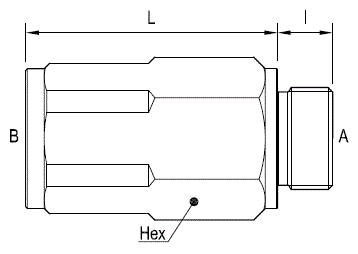

RE18316-37-dim(2023-11-01)
Springs
Z
Cracking presure
Ordering code
Ordering code
bar
psi
Y=05
Y=06
01
8
116
03.51.01.430
03.51.01.429
  • Very compact design and inline mounting for space saving.
  • Four sizes (see also previous page) provide great adaptability to the system.
  • Mounting position is unrestricted.
  • Very low Δp in the free flow direction.

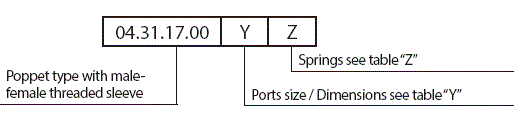

RE18316-37-order(2023-11-01)
Y
Ports A - B
L mm (inches)
I mm (inches)
Hex mm (inches)
05
G 1
82 (3.23)
18 (0.71)
46 (1.81)
06
G 1-1/4
102 (4.02)
20 (0.79)
55 (2.17)
