Sleeve for Line Mounting - Flow Control Valves - Flow Fuse

VPN-FF (G 1/2-G 3/4)

Description

This valve is composed by a sleeve with an inserted “Hose Burst” steel made cartridge type VPN1 (refer to RE 18329-85). Flow is always allowed to pass from A to B according to the Δp curves included in the Performance diagrams. The reverse flow “B” to “A”, or reaction flow, is unrestricted up to the pre-set value, above which the pressure drop across the floating disc will push the disc against the valve body, and will determine immediate closing of the line in a checked, leak free mode. The valve will remain closed (checked) from B to A until pressure is removed from the B, or until the A port pressure equalizes the B pressure. To help re-setting, or shorten the time for the disc to go back to the open position, the inserted cartridge can be supplied with the Extra Orifice “F” on request. The orifice diameter has to be specified when ordering (refer to table “Z”). Precision machining and hardening processes allow virtually leak free performance in the checked condition.

Steel body, zinc plated

Special, Metric, UNF: sizes available on request.

General:
VPN1 Code:
  • Ports A-B
0T.F4.01.03.03...:
  • G 1/2
0T.F4.01.03.04...:
  • G 3/4
RE18316-86-dim(2023-11-07)
Y

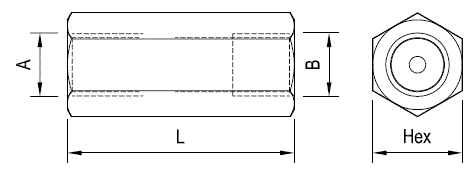

Ports A-B
L mm (inches)
Hex mm (inches)
Sleeve code
03
G 1/2
60 (2.36)
27 (1.06)
OC.51.02.011
04
G 3/4
72 (2.84)
32 (1.26)
OC.51.02.017
Z
ORIFICE DIAMETER mm (inches)
00
no orifice
06
1 (0.039)
01
0.5 (0.019)
07
1.2 (0.047)
02
0.6 (0.023)
08
1.3 (0.051)
03
0.7 (0.027)
09
1.5 (0.059)
04
0.8 (0.031)
10
1.9 (0.074)
05
0.9 (0.035)
11
2 (0.078)

The complete valve here shown is supplied with the Gap “R” Factory adjusted at 0.7 mm, corresponding to: Approx. (32–37) l/min, for size G 1/2, and Approx. (53–58) l/min, for size G 3/4, depending from oil viscosity. For special settings consult us.

Important: the pre-set R gap corresponds to the theoretical shut-off flow: please make sure that the selected shut-off flow is at least 50% higher than the actual Maximum Working Flow, in order to prevent inadvertent valve shutting with cold oil.

RE18316-86-02(2023-11-07)

In a variety of cases when oil flow must be immediately stopped in case of failure of an hose in order to prevent the load from falling freely.

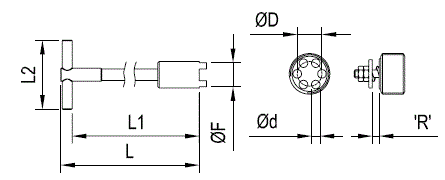

Fitting tool dimension

VPN1 code thread
ØF
L
L1
L2
ØD
Ød
Inst. torque
Tool code
0T.F4.01.03.03... G 1/2
18.8 (0.74)
120 (4.72)
108 (4.25)
80 (3.15)
13 (0.51)
4.5 (0.18)
4 Nm (3)ft-lb
AVA18-02
0T.F4.01.03.04... G 3/4
24 (0.95)
120 (4.72)
108 (4.25)
80 (3.15)
16 (0.63)
6 (0.24)
10 Nm (7)ft-lb
AVA18-03

'R'= GAP corresponding to the maximum desired free flow.
