42-Size 3-Way Valve Housings

Expand All|Collapse All

Ratings

Pressure rating:

207 bar (3000 psi) Aluminum
345 bar (5000 psi) Ductile iron

Material:

6061-T6511 Aluminum
Dura-bar Ductile iron

Dimensions

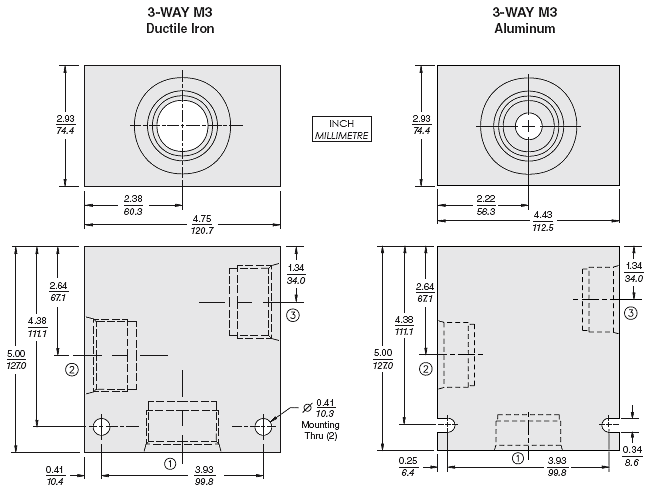

42_Hous-3w(2022-02-24)

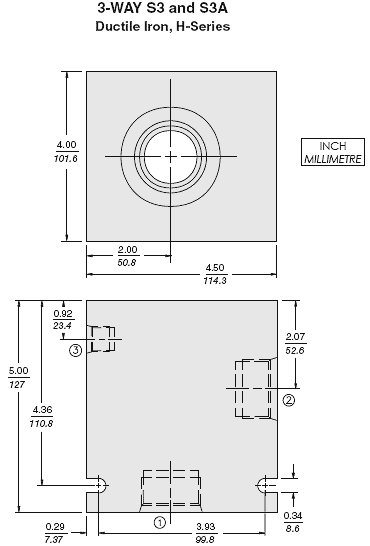

42_Hous-3w_S3-S3A(2022-02-24)

Part Numbers

CAVITY: VC42-M3

P/N: 7021250

Code: 20T

Material: ALUMINUM

Port 1

Port 2

Port 3

Port 4

Port 5

Port 6

SAE 20

SAE 20

SAE 20

P/N: 7154620

Code: 20TD

Material: DUCTILE IRON

Port 1

Port 2

Port 3

Port 4

Port 5

Port 6

SAE 20

SAE 20

SAE 20
