Description

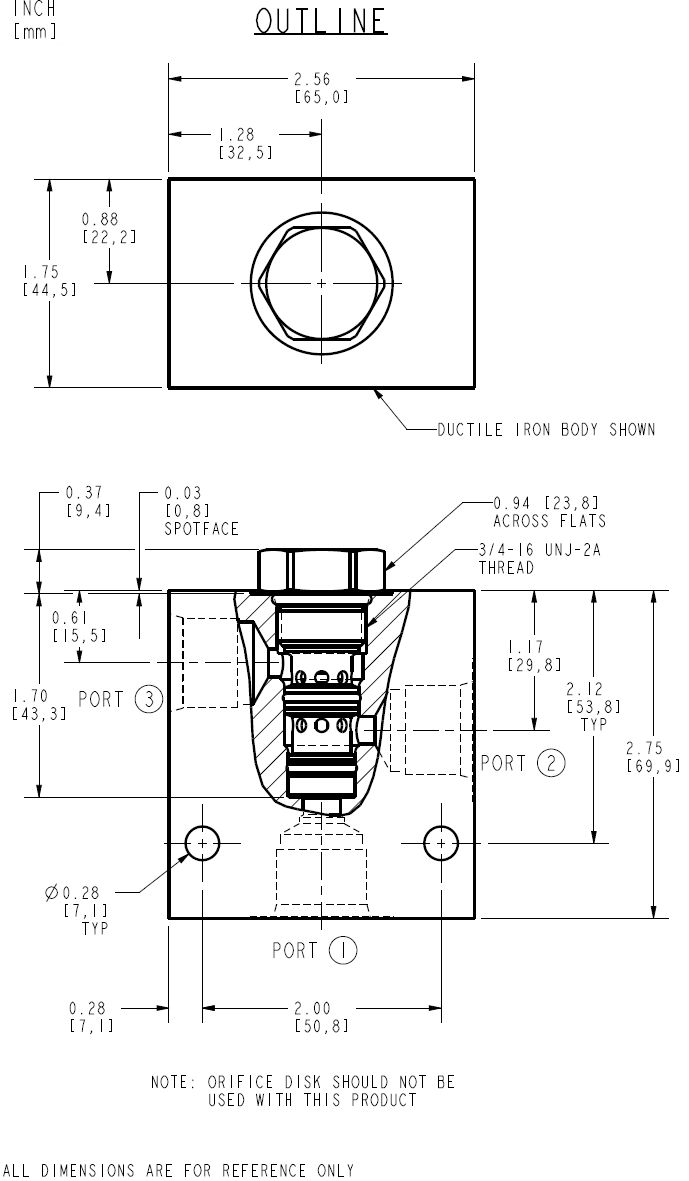

The HPC08-30 is a screw-in, cartridge style, pilot operated, hydraulic check valve for use as a blocking or load-holding device for high pressure applications.
Operation

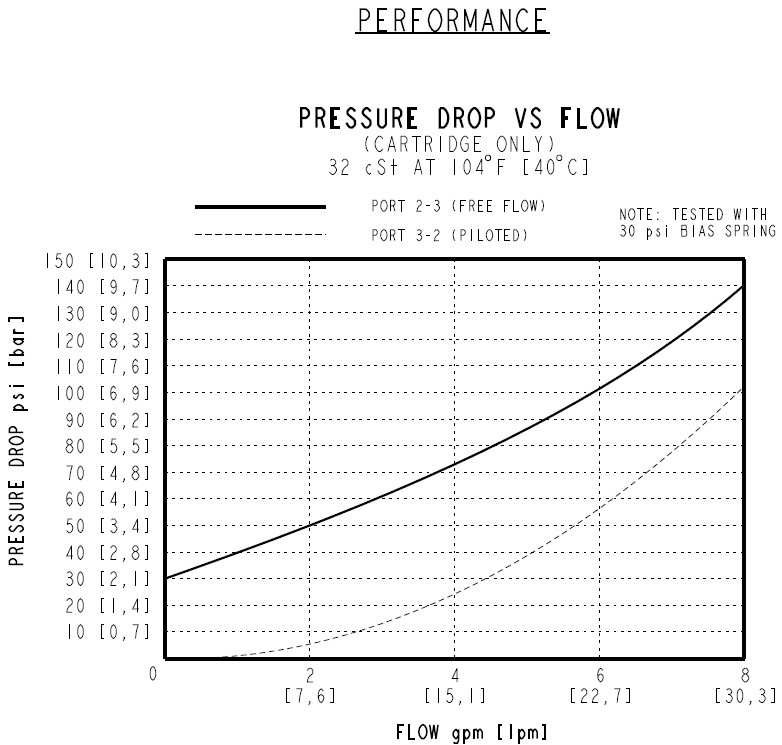

The valve allows free flow from port 2 to port 3, while normally blocking flow in the reverse direction. Flow will be allowed from port 3 to port 2 when pressure at port 1 exceeds one-third the pressure at port 3.
Features
- Hardened seat for long life and low leakage.

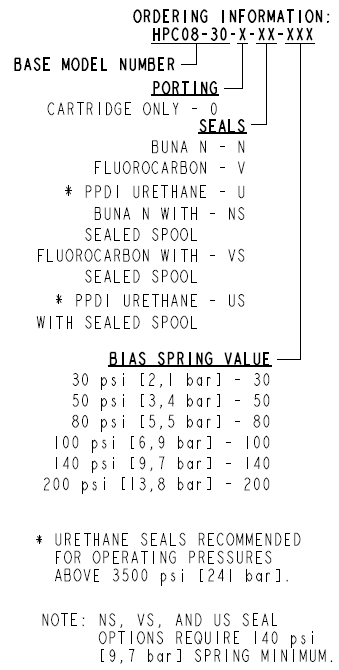

- Optional sealed piston.
- Optional spring ranges.
- Compact size.
- All HyPerformance products are tested to the rigorous standards of the NFPA specification T2.6.1
- All HyPerformance valves are tested at a verification level of 90% and an assurance of 99%.
