Description

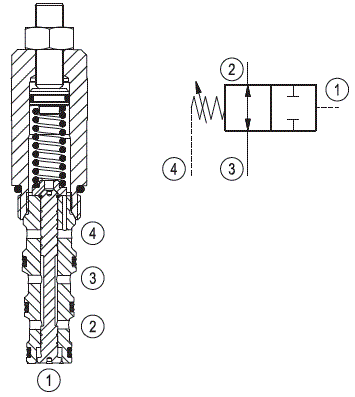

Flow is allowed from 2 to 3 until the pressure at 1 rises to the selected spring setting. Upon reaching this pressure, the spool shifts upward, blocking flow until pressure at 1 drops below the set point. The spring chamber is drained to 4 thus the setting is independent from any pressure in 3.

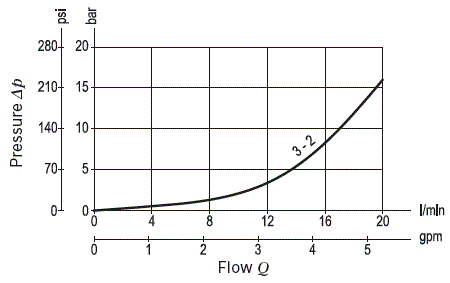

1) Measured at 200 bar (2900 psi)
