Cartridge Valves - Directional Control Valves - Logic elements

VLST-20A

RE18321-63-01(2023-11-07)
Description

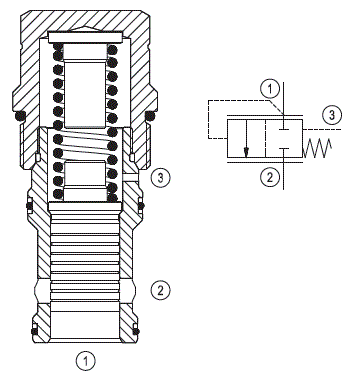

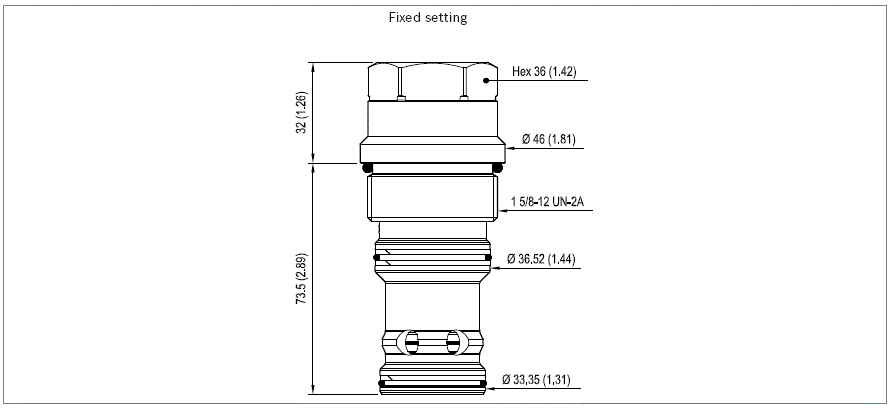

When pressure at 1 rises above the selected spring bias pressure against the spool, the valve shifts to allow flow from 1 to 2. Pilot pressure at 3 is additive to the spring bias pressure. The valve may be used in switching or compensation type applications.

¹) Measured at 200 bar (2900 psi)

²) Only external seals for 10 valves

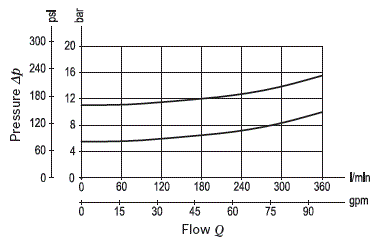

General:
Max. operating pressure:
  • 350 bar (5000 psi)
Flow range:
  • 10 - 360 l/min. (3 - 95 gpm)
Max. internal leakage¹):
  • 200 cm³/min. (12 cu.in./min.)
Fluid temperature range:
  • -30 to 100 °C (-22 to 212 °F)
Installation torque:
  • 128 - 149 Nm (95 - 110 ft-lbs)
Weight:
  • 0.8 kg (1.7 lbs)
Cavity:
  • CA-20A-3C (see data sheet 18325-70)
Lines bodies and standard assemblies:
  • Please refer to section “Hydraulic integrated circuit” or consult factory
Seal kit²):
  • Code: RG20A9010530100
  • material no: R901111397
Fluids:
  • Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm²/s (cSt)
Recommended degree of fluid contamination:
  • Nominal value max. 10µm (NAS 8) / ISO 4406 19/17/14
Installation:
  • No restrictions
Other Technical Data:
  • See data sheet 18350-50
