TS12-36

PRESSURE REDUCING/ RELIEVING PROPORTIONAL VALVE U.S. PATENT # 7,137,406

STP Files Download PDF of Page Request a Quote
Expand All|Collapse All

Description

This is a pilot operated spool type, proportional pressure reducing/relieving valve. It is intended for use in mineral based or synthetic (with lubricating properties) hydraulic fluids.

Operation

The regulated pressure is proportional to the input electrical current in the pressure ranges shown below. Maximum operating pressure port 1 and port 2: 4000 psi [275,8 bar] maximum tank pressure port 3: 1000 psi [68,9 bar] (tank pressure is additive to regulated pressure.

Features

  • 12 and 24 volt coils standard.
  • Standard waterproof coils or optional waterproof E-Coils.
Pressure Ratings
Reduced pressure range:
  • 6.9 to 207 bar (100 to 3000 psi) A
  • 6.9 to 172 bar (100 to 2500 psi) B
  • 6.9 to 138 bar (100 to 2000 psi) C
Flow Ratings
Maximum pilot flow:
  • 0.42 lpm (0.11 gpm) With maximum control current and with inlet pressure of
  • 241 bar (3500 psi) At regulated flow
  • 3.8 lpm (1 gpm)
Temperature Ratings
Operating fluid temperature:
  • -40 to 100 °C (-40 to 212 °C) With buna N seals
  • -26 to 204 °C (-15 to 400 °C) With viton seals
  • -54 to 107 °C (-65 to 225 °C) Less than 5% performance degradation over 1 million cycles (based on simulated test at with polyurethane seals 37.8 lpm (10 gpm) flow and maximum pressure setting
Recommended system filtration:
  • 10 µm Or better
Maximum control current:
  • 1.04 A D-series coil 12 Vdc
  • 0.96 A D-series coil 12 Vdc
  • 0.53 A D-series coil 24 Vdc
  • 0.50 A D-series coil 24 Vdc
  • 1.29 A E-series coil 12 Vdc
  • 1.22 A E-series coil 12 Vdc
  • 0.70 A E-series coil 24 Vdc
  • 0.66 A E-series coil 24 Vdc
Valve inductance:
  • 167 mH D-series coil 12 Vdc
  • 624 mH D-series coil 24 Vdc
  • 159 mH E-series coil 12 Vdc
  • 550 mH E-series coil 24 Vdc

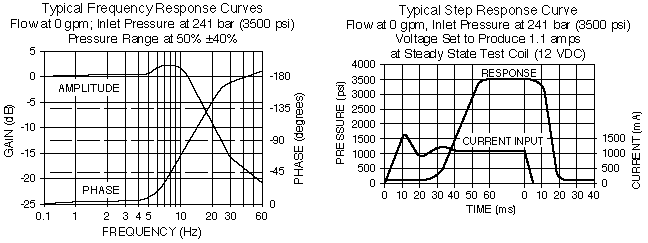

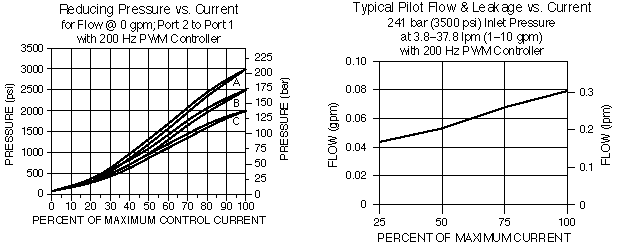

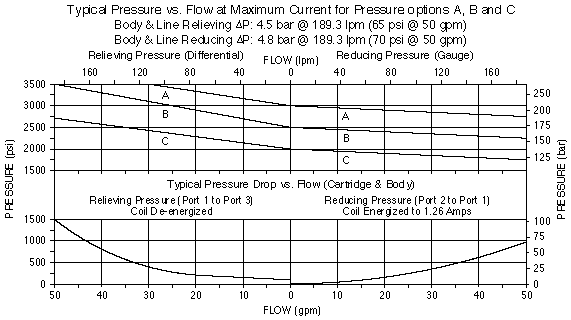

TS12-36_Perf_Chrt3(2022-02-24) TS12-36_Perf_Chrt2(2022-02-24) TS12-36_Perf_Chrt1(2022-02-24)

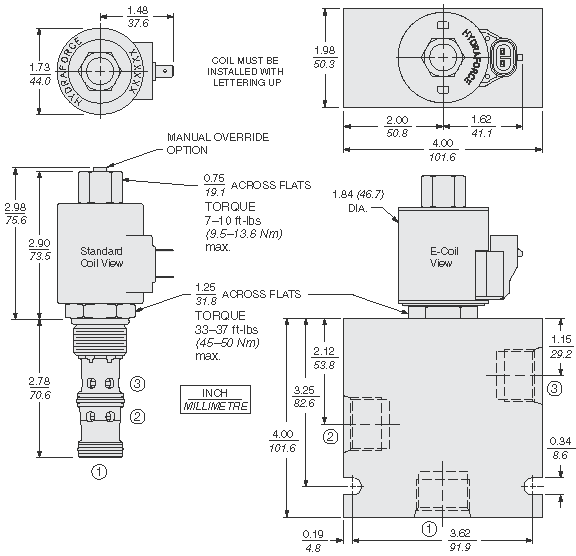

TS12-36_Dim_Dwg(2022-02-24)
Cavity:

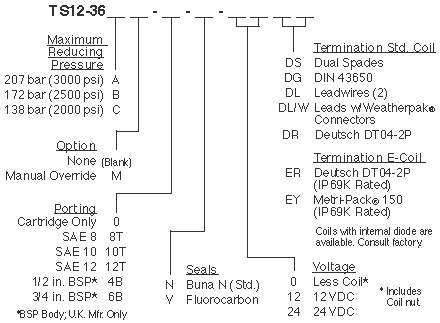

TS12-36_Order(2022-02-24)

Model Options

TS12-36DE-H-J-L
D Regulating Pressure Range
CODE
DESCRIPTION
A
6.9 to 206.8 bar (100 to 3000 psi) Pressure Range
B
6.9 to 172.4 bar (100 to 2500 psi) Pressure Range
C
6.9 to 138.0 bar (100 to 2000 psi) Pressure Range
E Manual Override
CODE
DESCRIPTION
BLANK
NONE
M
Minimum Regulated Pressure Override, 3/16" Internal Hex
H Line Body
CODE
DESCRIPTION
0
No Body
8T
Aluminum SAE 8
10T
Aluminum SAE 10
12T
Aluminum SAE 12
12TD
Ductile Iron SAE 12
6B
Aluminum BSPP 3/4" (6)
J Seal
CODE
DESCRIPTION
N
Buna-N
V
Fluorocarbon
P
Polyurethane
U
PPDI Urethane
L Coil
CODE
DESCRIPTION
0
No Coil
10DG
10 VDC, D-Coil, DIN 43650
10DL
10 VDC, D-Coil, Dual Lead Wires
10DS
10 VDC, D-Coil, Dual Spade
10EL
10 VDC, E-Coil, Dual Lead Wires
10ER
10 VDC, E-Coil, Deutsch
12DG
12 VDC, D-Coil, DIN 43650
12DL
12 VDC, D-Coil, Dual Lead Wires, 18 inches long
12DL/36
12 VDC, D-Coil, Dual Lead Wires, 36 inches long
12DL/W
12 VDC, D-Coil, Dual Lead Wires with Weatherpak
12DR
12 VDC, D-Coil, Deutsch
12DS
12 VDC, D-Coil, Dual Spade
12EG
12 VDC, E-Coil, DIN 43650
12EJ
12 VDC, E-Coil, AMP Jr.
12EL
12 VDC, E-Coil, Dual Lead Wires, 18 inches long
12EL/36
12 VDC, E-Coil, Dual Lead Wires, 36 inches long
12ER
12 VDC, E-Coil, Deutsch
12EY
12 VDC, E-Coil, Metri-Pack 150
20DS
20 VDC, D-Coil, Dual Spade
20ER
20 VDC, E-Coil, Deutsch
24AG
24 VDC, D-Coil, DIN 43650
24AP
24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires
24DG
24 VDC, D-Coil, DIN 43650
24DL
24 VDC, D-Coil, Dual Lead Wires
24DL/W
24 VDC, D-Coil, Dual Lead Wires with Weatherpak
24DP
24 VDC, D-Coil, 1/2" Conduit and Dual Lead Wires
24DR
24 VDC, D-Coil, Deutsch
24DS
24 VDC, D-Coil, Dual Spade
24EG
24 VDC, E-Coil, DIN 43650
24EJ
24 VDC, E-Coil, AMP Jr.
24EL
24 VDC, E-Coil, Dual Lead Wires, 18 inches long
24EL/36
24 VDC, E-Coil, Dual Lead Wires, 36 inches long
24ER
24 VDC, E-Coil, Deutsch
24EY
24 VDC, E-Coil, Metri-Pack 150
36DS
36 VDC, D-Coil, Dual Spade
