Description
FR12-33X is a screw-in, an adjustable, pressure compensated, priority type with reverse flowcheck flow control valve.
Operation

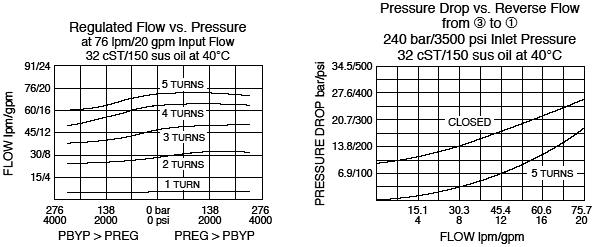

The regulated flow increases from closed to fully open with counter-clockwise adjustment rotation. The valve will maintain the set flow regardless of pressure variations on the regulated or bypass port.
Features
- Bypass port 2 may be fully pressurized.
- Hardened steel parts for long life.
- Quiet, modulated response.
- Industry-common cavity.
