Description

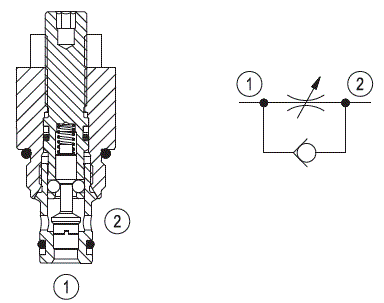

With flow from 2 to 1, the valve provides a fully adjustable orifice restriction. Free flow is permitted from 1 to 2, regardless of valve adjustment, by when pressure overcomes the spring bias of the valve’s check function. STFU, compared to STVU, is suitable for applications requiring fine adjustments.

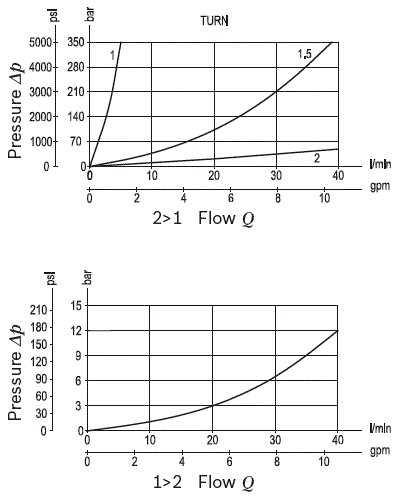

1) Measured at 200 bar (2900 psi)
