Cartridge Valves - Pressure Control Valves - Pressure relief

VSNG-10A

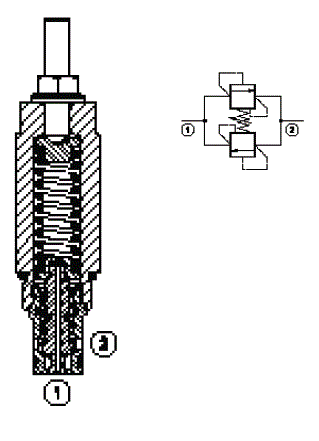

RE18318-07-01(2023-11-23)
Description

Flow is blocked bi-directionally between 1 and 2 until pressure at either port increases to meet the selected valve setting, lifting the poppet from its seat and allowing relief flow to the opposite port. The unique Bosch Rexroth Oil Control poppet design provides consistent cracking pressures at both ports and enhanced stability at all flows and pressures. Maximum difference for crack pressure in both direction : 10 bar (145 psi)

¹) Measured at 200 bar (2900 psi)

²) Only external seals for 10 valves

General
Max. operating pressure port 1:
  • 240 bar (3500 psi)
Max. pressure admitted port 2:
  • 240 bar (3500 psi)
Max. flow:
  • 56 l/min (15 gpm)
Max. internal leakage¹):
  • 30 cm³/min. (1.8 cu.in/min.)
Fluid temperature range:
  • -30 to 100 °C (-22 to 212 °F)
Installation torque:
  • 41 - 47 Nm (30 - 35 ft-lbs)
Weight:
  • 0.25 kg (0.55 lbs)
Cavity:
  • CA-10A-2N (see data sheet 18325-70)
Lines bodies and standard assemblies:
  • Please refer to section “Hydraulic integrated circuit” or consult factory
Seal kit²):
  • Code: RG10A201053100
  • material no: R901111366
Fluids:
  • Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm²/s (cSt)
Recommended degree of fluid contamination:
  • Nominal value max. 10μm (NAS 8) / ISO 4406 19/17/14
Installation position:
  • No restrictions
Other Technical Data:
  • See data sheet 18350-50

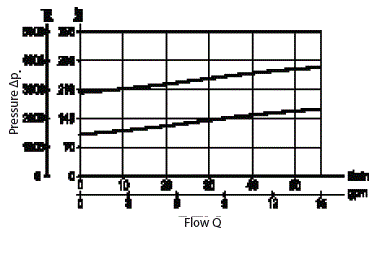

RE18318-07-02(2023-11-23)

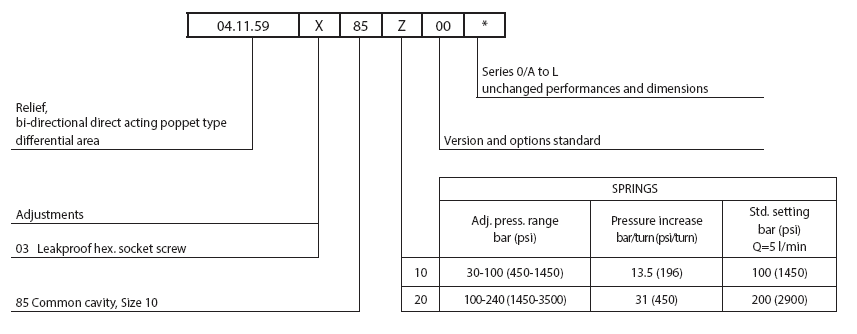

RE18318-07-order(2023-11-23)

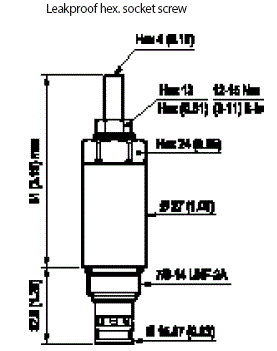

RE18318-07-dim(2023-11-23)
