Compact Motion Control Valves - Motion Control Valves - Motion control dual setting

VAA-B-SICN-PDRM-150

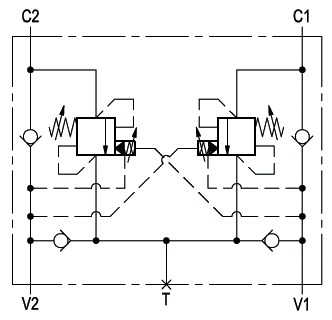

RE18308-79-01(2023-10-25)
Description

It provides static and dynamic motion control by regulating flow and pressure IN and OUT of the hydraulic motor at ports C1 and C2. When installed close to the motor, it can stop runaway in case of hose failure. The check sections allow free flow into the motor and prevent reverse movement; the pilot assisted relief valves control the movement when pilot pressure is applied. The relief valves operate with 2-levels pressure setting, both adjustable: higher setting when flow is delivered to the motor, and lower setting when flow is discharged by the motor during stopping . A system of check valves allows cross line relief and an optional make-up port (T) allows to compensate for any volume change.

General:
Operating pressure:
  • up to 210 bar (3000 psi)
Max. flow:
  • 120 l/min. (32 gpm)
Weight:
  • 5.7 kg (12.6 psi)
Manifold material:
  • Note: Note: aluminium bodies are often strong enough for operating pressures exceeding 210 bar (3000 psi), depending from the fatigue life expected in the specific application. If in doubt, consult our Service Network.
  • Aluminium
Fluid:
  • Mineral oil (HL, HLP) according DIN 51524
Fluid temperature range:
  • -30 °C to 100 (-22 to 212 °F)
Viscosity range:
  • 10 to 500 mm²/s (cSt)
Recommended degree of fluid contamination:
  • Class 19/17/14 according to ISO 4406
Other technical data:
  • see data sheet 18350-50
Relief setting: at least 1.3 times the highest expected load.The lower pressure setting (see table “SPRINGS”) refers to flow “C1” to “C2” (or “C2” to “C1”), and is adjustable through register “A” (see the drawing).:
  • Note: Note: for applications outside these parameters, please consult us.

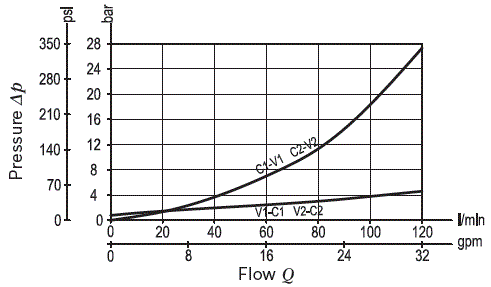

RE18308-79-02(2023-10-25)

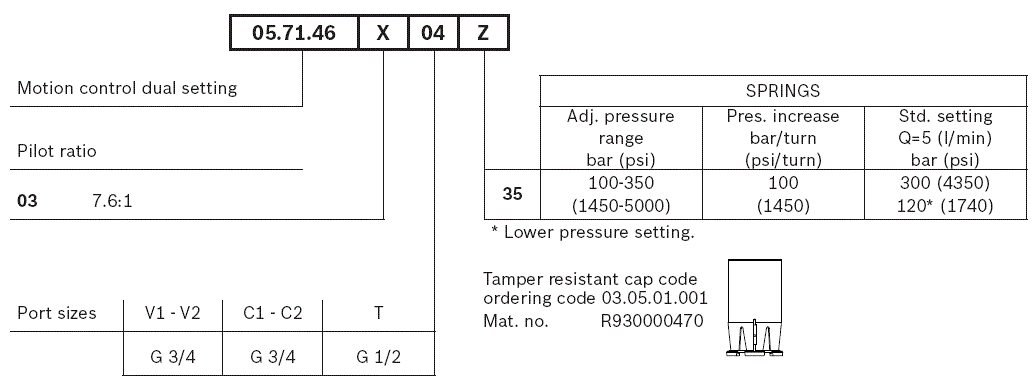

RE18308-79-order(2023-10-25)

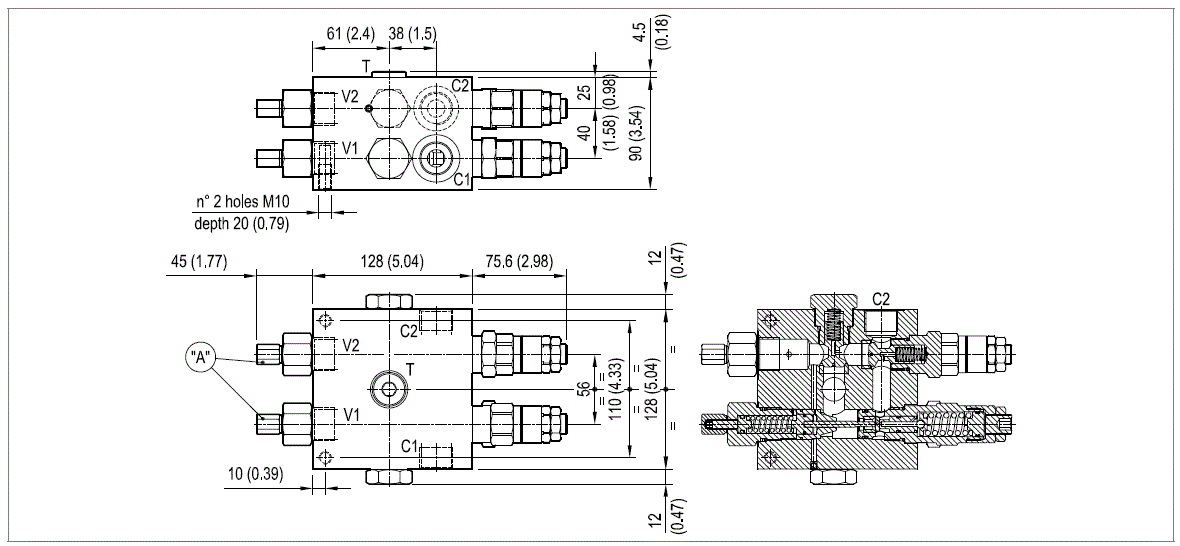

RE18308-79-dim(2023-10-25)
