Electronic Controls - Electronic Control Units (ECU)

EPEC-EC44

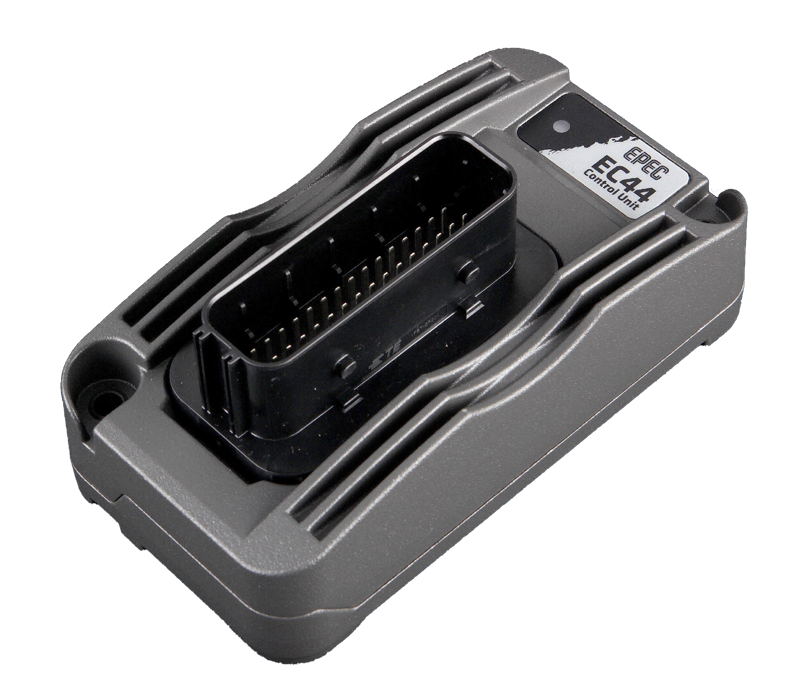

Epec EC44 is a compact programmable control unit based on the new connector and housing concept.

Expand All|Collapse All

Overview

Description

Epec EC44 has a powerful 32-bit processor and large internal memory for application and parameters. EC44 has 16 inputs and 16 outputs with high-side current measurement, two CAN buses and a status LED. EC44 is based on CODESYS3.5 programming and supports Epec PLC libraries, Epec MultiTool and CANmoon tools. EC44 Control Unit has a robust full aluminum housing with IP69 protection and a lever locking connector designed especially for high vibration environments.

Processor:
  • 32 bit CPU
Application SRAM:
  • up to 1 MB
PLCopen application size:
  • up to 1024 kB
CAN ports:
  • 2
Total I/O:
  • 32 16 inputs / 16 outputs
IP class:
  • IP69
Temperature range:
  • -40 to +85 °C (-40 to +185 °F)
Connectors:
  • 1 LEAVYSEAL 46 pins
Programming:
  • CODESYS version 3.5
Supported CAN protocols:
  • CANopen
  • SAE J1939
  • ISOBUS
Indicator:
  • RGB diagnostic LED for quick status check and fault detection

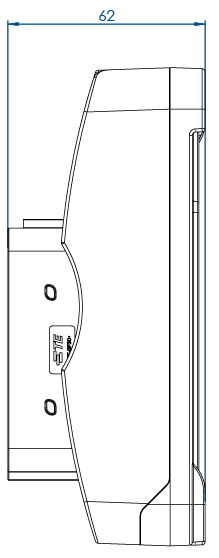

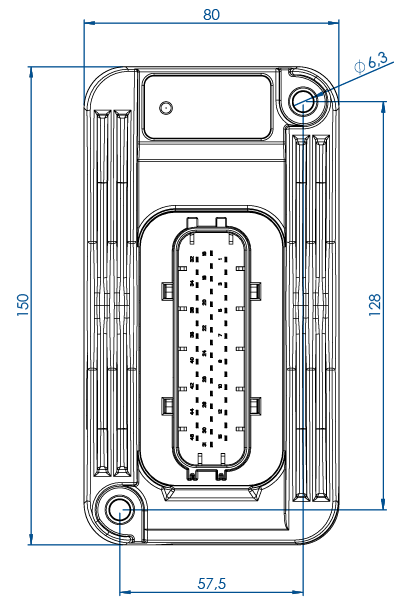

EPEC-EC44_dim1(2025-04-22) EPEC-EC44_dim2(2025-04-22)
Symbol/Name
Explanation
CE
This product complies with the requirements set in the CE Standard.
E17
This product is certified with normal automotive (E17) EMC (electromagnetic compatibility) standards.
RoHS2
This product complies with the RoHS directive (The Restriction of the use of certain Hazardous Substances in Electrical and Electronic Equipment).
AEF HW Conformance
This product has AEF HW conformance approval (AEF HW ID 000441)
Ordering code
4002967
4002968
4003049
EPEC ordering code
E30DEC44-022
E30DEC44-020
E30DEC44-020E
CAN
2
2
2
5 V / 10 V ref
1
1
1
PWM/DO/CM
12
16
16
PWM / DO
4
—
—
AI / DI
10
10
10
AI / DI / PI
6
6
6
CODESYS version
3.5 SP13
3.5 SP13
3.5 SP13
Coating
unpainted
painted
painted
ISObus license
no
no
yes

Connector: Part No. 4002863

Backshell: Part NO. 4002866

MCP receptacle 1.5K: Part NO. 4002868

Wire seal: Part NO. 4002870

Cavity plug: Part NO. 4002872

CoDeSys 3.5 Programming Software: Available for free download from the HydraForce Electronics Portal.
