To order only manifold see data sheet RE 18325-85


Manifolds and Plates - Line Mount - Needle restrictor with free reverse flow
STVU-08A_(2)

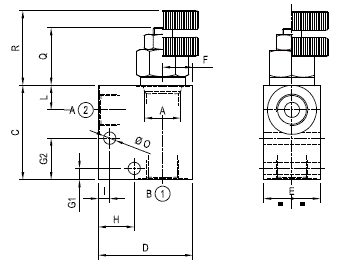

Dimensions

Technical data

General
Max flow:
- up to 40 l/min (11 gpm)
Max operating pressure for steel body:
- 350 bar (5000 psi)
Max operating pressure for aluminium body:
- 210 bar (3000 psi)
Table “Y”
Cavity
Y
PORT SIZE
Max Flow l/min (gpm)
DIMENSIONS mm (Inches)
A
1 - 2
C
D
E
F
G1
G2
H
I
L
O
Q
R
SIZE08
09
G 1/4
up to 40 (11)
50(1.97)
50(1.97)
30(1.18)
16(0.63)
6(0.24)
22(0.87)
19(0.75)
6(0.24)
13(0.51)
6.5(0.26)
31(1.22)
40(1.58)
02
G 3/8
50(1.97)
50(1.97)
30(1.18)
16(0.63)
6(0.24)
22(0.87)
19(0.75)
6(0.24)
13(0.51)
6.5(0.26)
SIZE 10
SIZE 12
SIZE 16
SIZE 20
Cartridge style

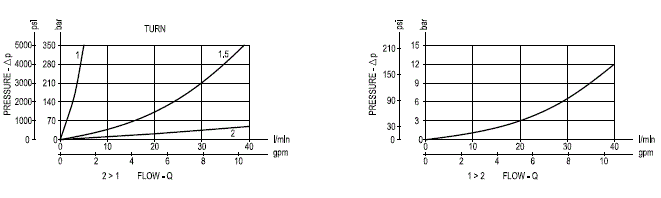

Performance graphs

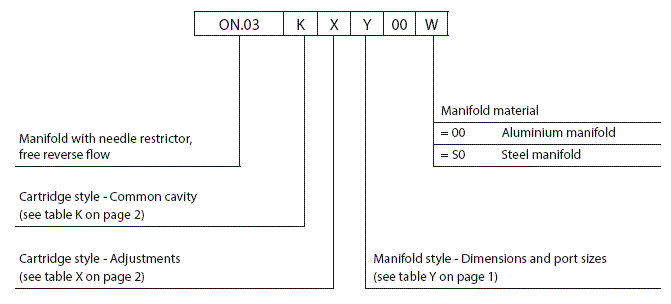

Ordering code
