Manifolds and Plates - Line Mount - Needle restrictor with free reverse flow

STVU-10A_(2)

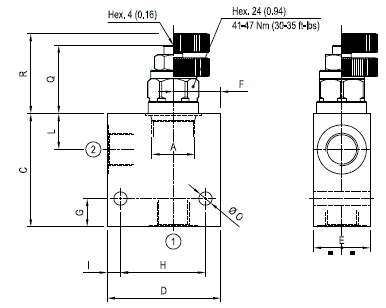

RE18331-04-dim(2023-11-24)
RE18331-04-01(2023-11-24)

To order only manifold see data sheet RE 18325-85

General
Max flow:
  • up to 80 l/min (22 gpm)
Max operating pressure for steel body:
  • 350 bar (5000 psi)
Max operating pressure for aluminium body:
  • 210 bar (3000 psi)
Cavity
Y
PORT SIZE
Max Flow l/min (gpm)
DIMENSIONS mm (Inches)
A
1 - 2

C
D
E
F
G1
G2
H
I
L

O
Q
R
SIZE08





























SIZE 10
03
G 1/2

80 (22)
60(2.36)
60(2.36)
35(1.38)
25(0.98)
15(0.59)
45(1.77)
7.5(0.3)
19(0.75)


7.5(0.30)
37(1.46)
43(1.69)
04
G 3/4

60(2.36)
70(2.76)
40(1.58)
30(1.18)
15(0.59)
55(2.17)
7.5(0.3)
20(0.79)


9(0.30)
SIZE 12





























SIZE 16





























SIZE 20

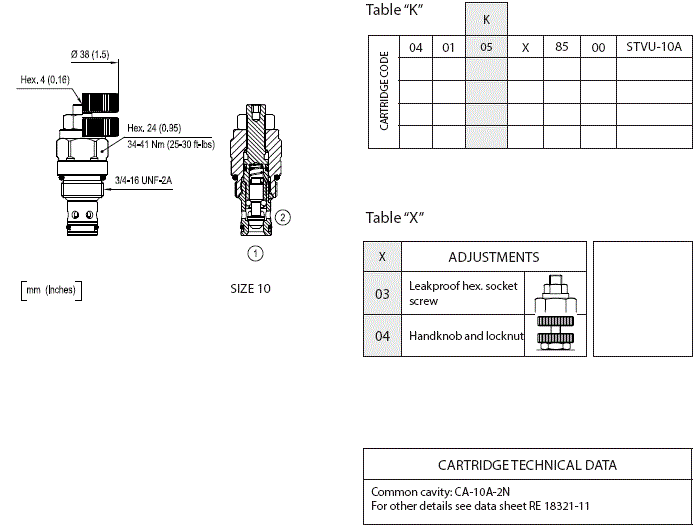

RE18331-04-02(2023-11-24)

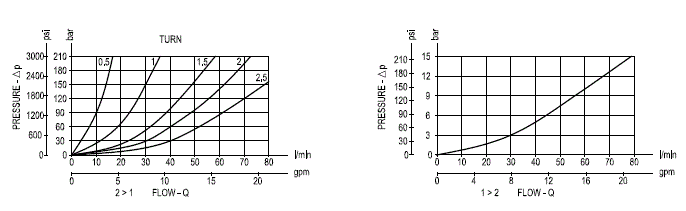

RE18331-04-03(2023-11-24)

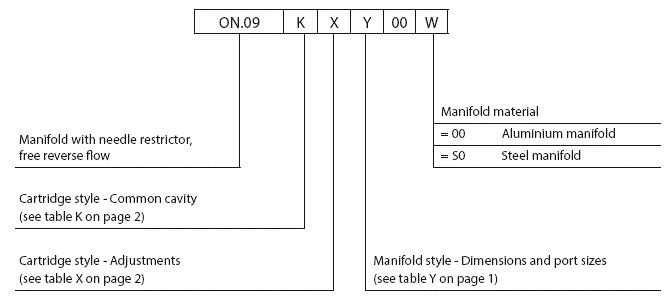

RE18331-04-order(2023-11-24)
