Manifolds and Plates - Line Mount - Relief

VSAN-08A-C / VSBN-08A-C

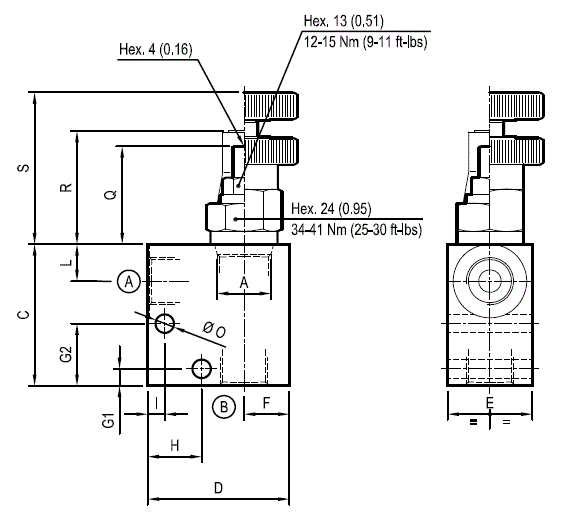

RE18330-01-dim(2023-11-21)
RE18330-01-01(2023-11-21)

To order only manifold see data sheet RE 18325-85

General:
Max flow:
  • up to 20 l/min (5 gpm)
Max operating pressure for steel body:
  • 350 bar (5000 psi)
Max operating pressure for aluminium body:
  • 210 bar (3000 psi)

Table “Y”

Cavity A
Y
PORT SIZE
Max Flow l/min (gpm)
DIMENSIONS mm (Inches)
1 - 2


C
D
E
F
G1
G2
H
I
L
O
Q
R
S
SIZE 08
09
G 1/4

up to 20 (5)
50 (1.97)
50 (1.97)
30 (1.18)
16 (0.63)
6 (0.24)
22 (0.87)
19 (0.75)
6 (0.24)
13 (0.51)
6.5 (0.26)
35.5 (1.4)
40 (1.58)
54 (2.13)
02
G 3/8

50 (1.97)
50 (1.97)
30 (1.18)
16 (0.63)
6 (0.24)
22 (0.87)
19 (0.75)
6 (0.24)
13 (0.51)
6.5 (0.26)





























































































RE18330-01-02(2023-11-21)

Table “Z”

Z
SPRINGS
K=49 typ e












Adj. press. range bar(psi)
Pres. increase bar/turn (psi/turn)
Std. setting 5 l/min bar (psi)










X=03
05
10-70 (145-1000)
26 (375)
50 (725)










10
35-140 (500-2000)
50 (725)
100 (1450)










20
105-210 (1500-3000)
79 (1145)
200 (2900)










35
175-350 (2500-5000)
170 (2465)
350 (5000)










X=04
10













20













35
35-350 (500-5000)
72 (1044)
200 (2900)










X=73
35
35-350 (500-5000)
72 (1044)
200 (2900)























































RE18330-01-03(2023-11-21)

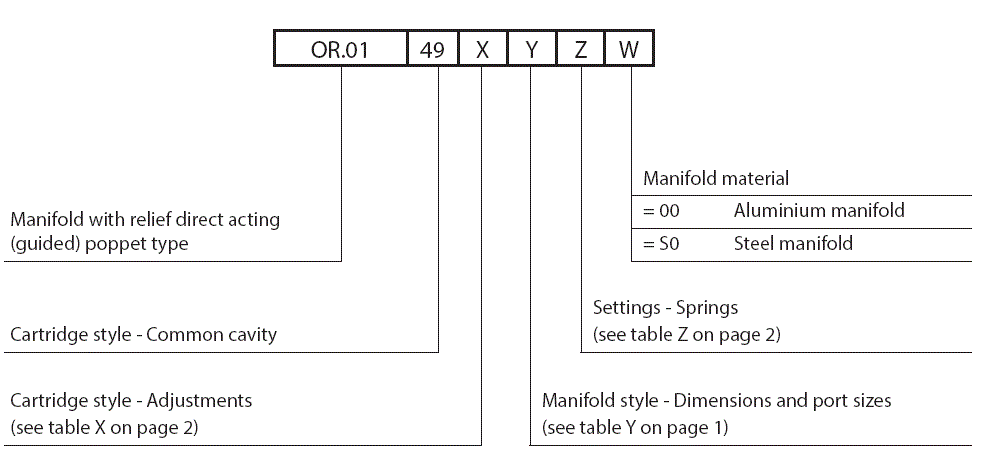

RE18330-01-order(2023-11-21)
