Description
The DCV08 is a double pilot operated, hydraulic check valve for use in blocking or load holding circuite.
Operation
The valve allows flow from "V" ports to "C" ports, while normally blocking flow in the opposite direction. Flow will be allowed from "C" to "V" when pressure is applied to the opposite side "V" port. The valve has 4:1 pilot ratio, so at least 25% of the load pressure held at either "C" port is required at the opposite "V" port to open the flow passage.
Features
- Hardened seat for long life and low leakage.
- Optional sealed piston.
- Optional spring ranges.

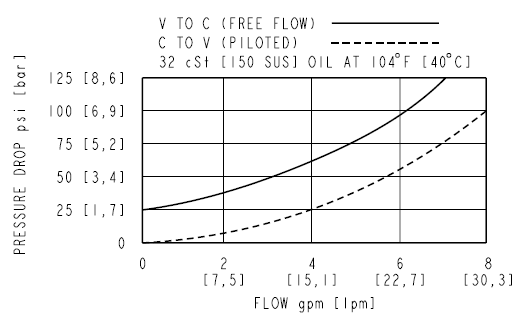

- Low pressure drop.
- Check section is serviceable as a cartridge.
