Description

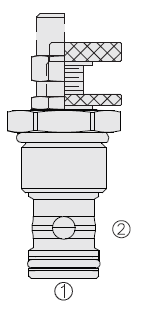

HNV12-20 is a screw-in, cartridge style, variable orifice, hydraulic flow restrictor valve.
Operation
The valve increases its orifice size from fully closed to fully open with counter-clockwise adjustment rotation.
Features
- Rated for high pressure operation.
- Compact size.
- Can be used with HyPerformance™ ductile iron body or standard ductile iron body.
- Adjustments cannot be backed out of the valve.
- Desired settings may be locked down.
- Hardened parts for long life.

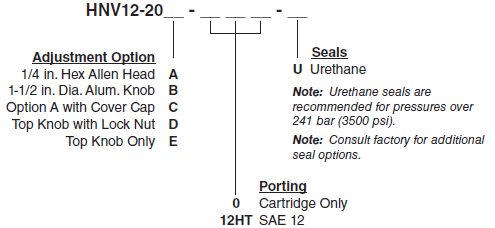

- Variety of adjustment options available.
- Positive shut-off.
- Linear adjustment.
