Cartridge Valves - Pressure Control Valves - Pressure relief

VSDN-10A

RE18318-03-01(2023-11-22)
Description

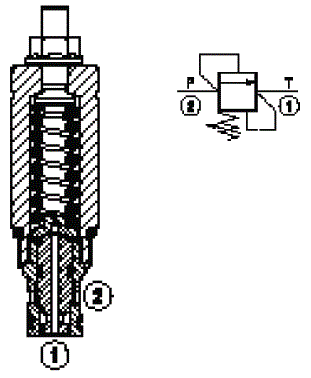

Flow is blocked from 2 to 1 until pressure increases to meet the selected valve setting, lifting the poppet from its seat and allowing relief flow through port 1 to tank. Pressure at port 1 is additive to the relief setting of the valve. The unique Bosch Rexroth Oil Control poppet design provides enhanced stability at all flows and pressures.

¹) At 80% of pressure setting

²) Only external seals for 10 valves

General:
Max. operating pressure port 2 (P):
  • 350 bar (5000 psi)
Max. pressure admitted port 1 (T):
  • 140 bar (2000 psi)
Max. flow:
  • 120 l/min (32 gpm)
Max. internal leakage¹):
  • 15 drops/min.
Fluid temperature range:
  • -30 to 100 °C (-22 to 212 °F)
Installation torque:
  • 41 - 47 Nm (30 - 35 ft-lbs)
Weight:
  • 0.2 kg (0.44 lbs)
Cavity:
  • CA-10A-2N (see data sheet 18325-70)
Lines bodies and standard assemblies:
  • Please refer to section “Hydraulic integrated circuit” or consult factory
Seal kit²):
  • Code: RG10A2010520100
  • material no: R901111363
Fluids:
  • Mineral-based or synthetics with lubricating properties at viscosities of 10 to 500 mm²/s (cSt)
Recommended degree of fluid contamination:
  • Nominal value max. 10µm (NAS 8) / ISO 4406 19/17/14
Installation position:
  • No restrictions
Other Technical Data:
  • See data sheet 18350-50
RE18318-03-02(2023-11-22)

Note: Special settings available. Contact factory authorized representative for ordering code.

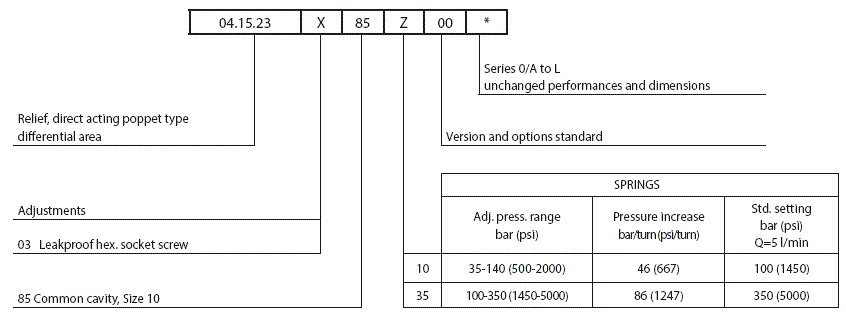

RE18318-03-order(2023-11-22)
