Cartridge Valves - Solenoid Valves - 2-ways

VEDT-08A-A-16-NC

Note: Coils must be ordered separately.

General:
Weight:
  • 0.22 kg (0.48 lbs)
Installation orientation:
  • Optional
Fluid Temperature:
  • -30 to 60 (-22 to 140)
Hydraulic:
Max. operating pressure:
Max. flow:
Max. internal leakage:
Fluid temperature range:
Response time:
Fluids:
Installation torque:
Recommended degree of fluid contamination:
Cavity:
Lines bodies and standard assemblies:
Seal kit:
  • code
  • material no.
Seal kit coil:
  • code
  • material no.
Other technical data:
Electrical:
Type of voltage:
  • DC voltage
Coil type:
  • S7
Supply voltage:
  • See data sheet RE 18325-90
Power consumption:
  • 30 W
Duty cycle coil:
  • See performance graphs %
Type of protection:
  • See data sheet RE 18325-90
Nominal voltage:
  • -10% +10% coil 30W

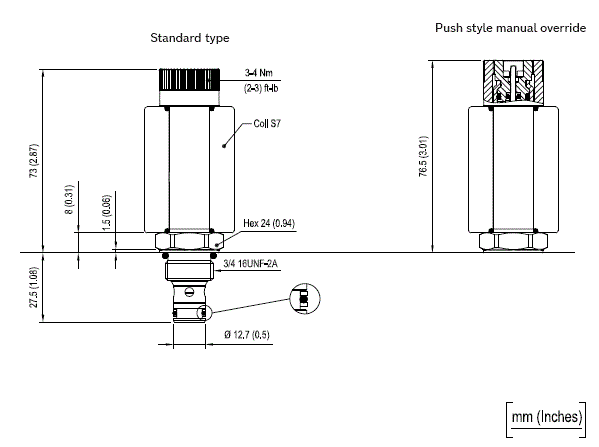

RE18324-03-dim(2023-11-08)

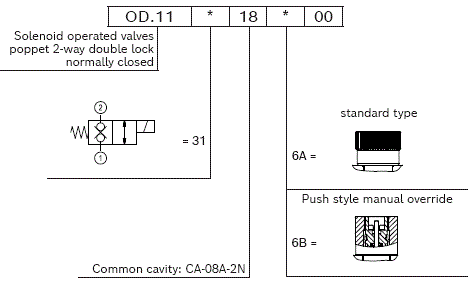

Solenoid operated valves poppet 2-way double lock normally closed

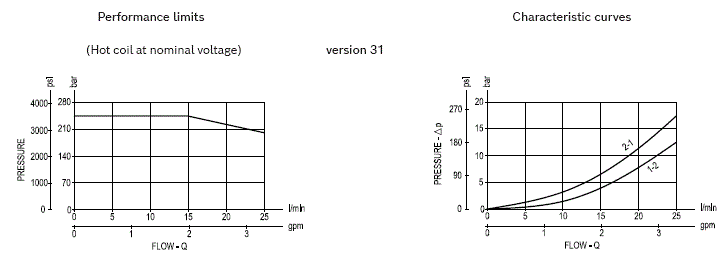

RE18324-03-02(2023-11-08)
RE18324-03-order(2023-11-08)
