Compact Motion Control Valves - Counterbalance Valves - Double acting with brake release port

A-VBSN-DE-VF-20A-FM (A2FE-80-90)

RE18308-61-01(2023-10-25)
Description

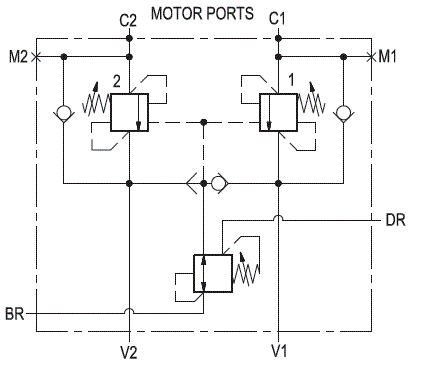

It provides static and dynamic motion control by regulating flow and pressure IN and OUT of the hydraulic motor at ports C1 and C2. It includes 2 motion control sections (ref. 1 - 2), each one composed by a check and a relief valve pilot assisted by pressure in the opposite line: the check allows free flow into the motor, then locks and prevents reverse movement. With pilot pressure applied at the line across, the pressure setting of the relief is reduced in proportion to the stated ratio until opening and allowing controlled reverse motion. With motor turning and without pilot pressure, the relief function builds up back-pressure at the motor port in order to stop the motion. Back-pressure at V1 or V2 is additive to the pressure settings in all functions. A shuttle valve directs either V1 or V2 line pressure to reducer cartridge (3) and provides “low/constant” pressure for brake releasing through port BR. The DR port must be connected to a low pressure tank line.

General:
Max. operating pressure:
  • 350 bar (5000 psi)
Max. flow:
  • 320 l/min. (85 gpm)
Flangeable on REXROTH motors A2FE80-90 series.:
Relief setting of valves 1 and 2: at least 1.3 times the highest expected load.:
Weight:
  • 13.2 kg (29.1 lbs)
Manifold material:
  • Zinc plated steel
Fluid:
  • Mineral oil (HL, HLP) according DIN 51524
Fluid temperature range:
  • -30 °C to 100 (-22 to 212 °F)
Viscosity range:
  • 10 to 500 mm²/s (cSt)
Recommended degree of fluid contamination:
  • Class 19/17/14 according to ISO 4406
Other technical data:
  • Note: Note: for applications outside these parameters, please consult us.
  • see data sheet 18350-50

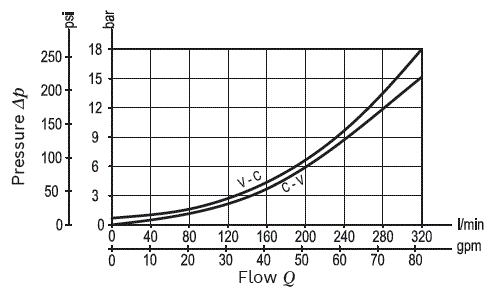

RE18308-61-02(2023-10-25)

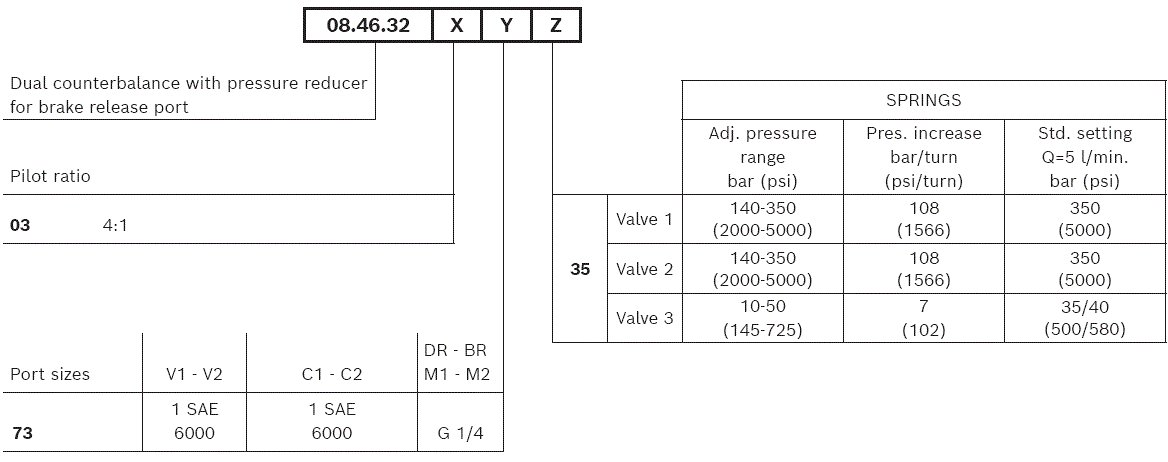

RE18308-61-order(2023-10-25)

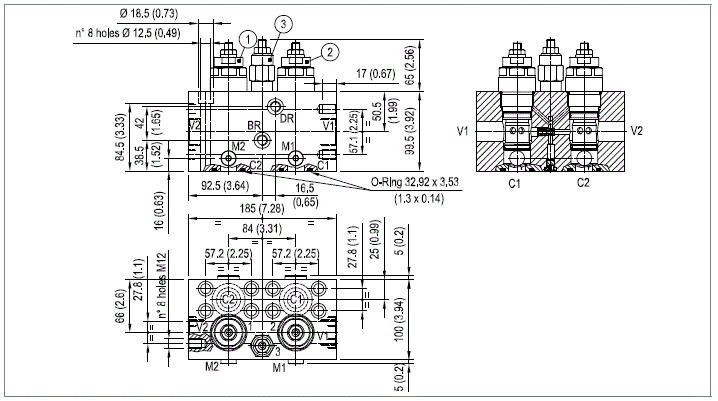

RE18308-61-dim(2023-10-25)
