Compact Motion Control Valves - Motion Control Valves - Motion Control with brake release port

VAA-B-SICN-ST-VF-250

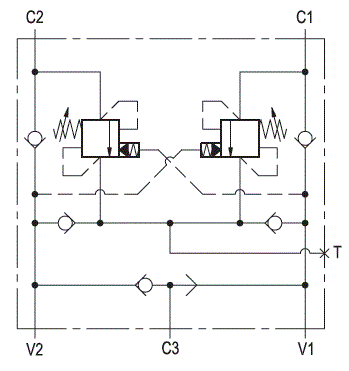

RE18308-77-01(2023-10-25)
Description

It provides static and dynamic motion control by regulating flow and pressure IN and OUT of the hydraulic motor at ports C1 and C2. When installed close to the motor, it can stop runaway in case of hose failure. The check sections allow free flow into the motor and prevent reverse movement; the pilot assisted relief valves control the movement when pilot pressure is applied. A system of check valves allows cross line relief; an optional make-up port (T) allows to compensate for any volume change. Through port C3, a shuttle valve directs either V1 or V2 pressure to the spring actuated brake for brake releasing.

General:
Operating pressure:
  • up to 210 bar (3000 psi)
Max. flow:
  • 200 l/min. (53 gpm)
Weight:
  • 10.9 kg (24 psi)
Manifold material:
  • Note: Note: aluminium bodies are often strong enough for operating pressures exceeding 210 bar (3000 psi), depending from the fatigue life expected in the specific application. If in doubt, consult our Service Network.
  • Aluminium
Fluid:
  • Mineral oil (HL, HLP) according DIN 51524
Fluid temperature range:
  • -30 °C to 100 (-22 to 212 °F)
Viscosity range:
  • 10 to 500 mm²/s (cSt)
Recommended degree of fluid contamination:
  • Class 19/17/14 according to ISO 4406
Other technical data:
  • see data sheet 18350-50
Relief setting: at least 1.3 times the highest expected load.:
  • Note: Note: for applications outside these parameters, please consult us.

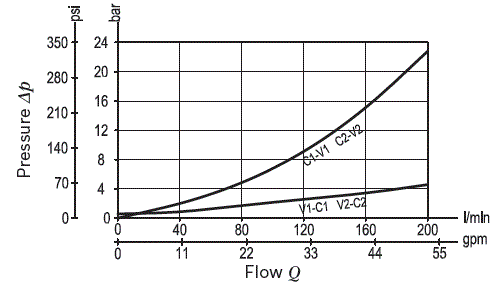

RE18308-77-02(2023-10-25)

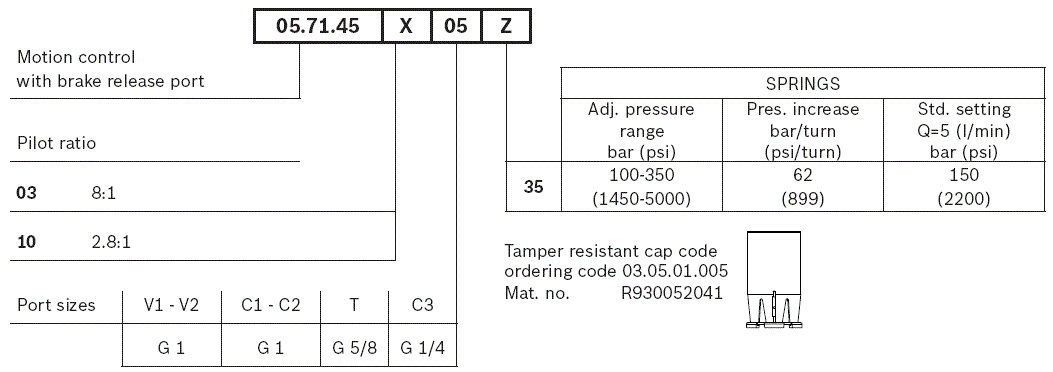

RE18308-77-order(2023-10-25)

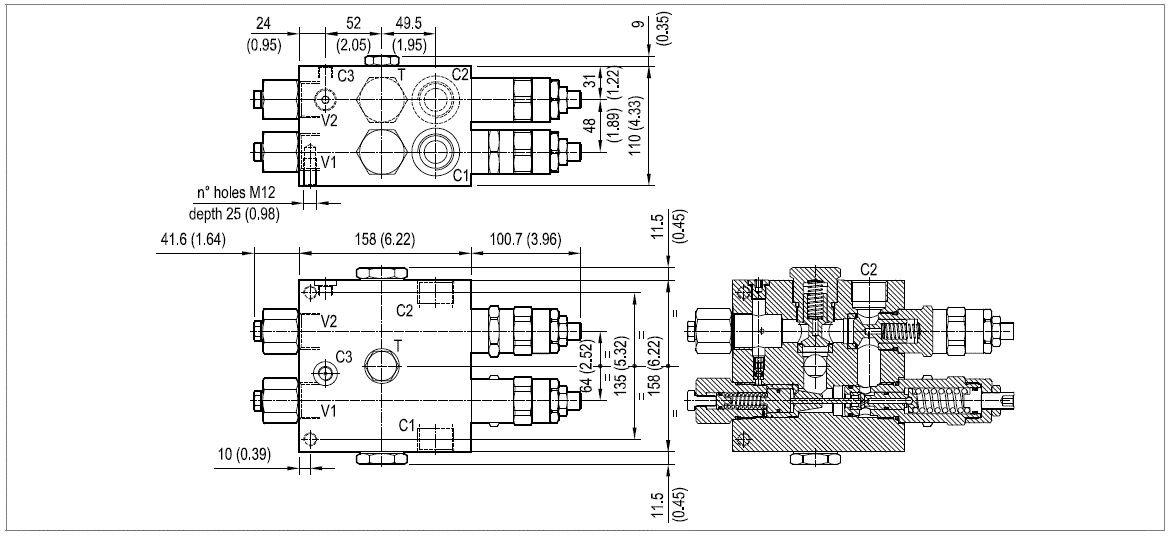

RE18308-77-dim(2023-10-25)
