Introduction to Electro-Hydraulic Control Technology

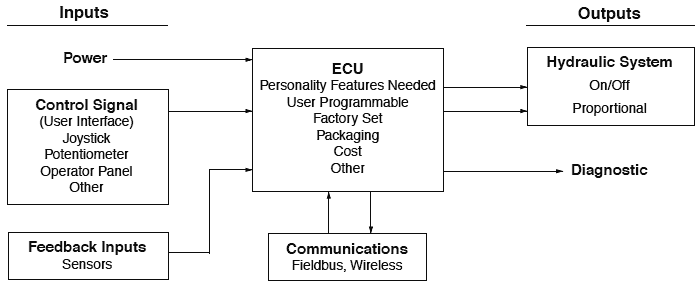

Electronic control in mobile equipment can consist of the following:

Operator Inputs:
These inputs can be defined as the user interface, and can consist of joysticks, potentiometers, operator panels, or other input devices.

Feedback Inputs:
These inputs can be defined as the machine interface, and can consist of pressure transducers, temperature sensors, flow sensors, velocity sensors or RPM sensors. When feedback inputs are used the system is described as “closed loop.”

Controller or ECU:
This is the brains of the electronic control. It processes the inputs and converts them into a defined output to the hydraulic system. The controller also can have the ability to receive feedback inputs from machine sensors and attenuate its outputs accordingly. The controller can be factory-programmed or have the ability to be user-programmable to meet the specific needs of the application.

Outputs can be on/off voltage signals or proportional PWM signals to control the hydraulic valving.

The controller can have the ability to engage in two-way communications with a bus system (for example: communication between the ECU and a display, or output signal to an input device).



ECUs were developed to replace the older “sequential relay circuits,” that were used for machine control. The ECU works by measuring its inputs and depending on their state, switching its outputs On or Off. The user enters setup instructions, usually via software, that will produce the desired results. Because many of the controller’s functions are user-programmable, an ECU has the versatility to be field-modified for changing applications or conditions.

Some ECUs have the capability to convert analog inputs, process them digitally, and produce analog outputs. ECUs that do not have built-in converters require separate analog to digital converters to convert the input.



An analog signal is an AC or DC voltage or current, or resistive signal that varies smoothly and continuously. In an analog system, a physical variable is represented by a proportional voltage that varies in correspondence with the physical variable. Electronic circuits that process analog signals are called linear circuits.

An example of an analog device is a traditional-style clock that has hour and minute sweep hands that rotate around the dial. As an input, an analog signal can provide infinite resolution due to its wide frequency range.



Digital signals vary in discrete (discontinuous) values to represent information for input. A digital signal is normally in the form of a series of pulses that rapidly change from one distinct, fixed voltage level to another.

An example of a digital device is a clock that displays the time in actual numerals that change in one-numeral increments. As an input, the resolution is dependent on the number of bits of information processed or available to the controller. In digital systems, physical variables are represented by numerical values using the binary (base 2) number system.



Some of the different forms that mobile electronics can take are described in the chart shown on this page. There is an increasing complexity and cost as the controllers move from single-function analog controls to complete complex digital control systems.

Digital vehicle controllers offer a high level of sophistication by executing a programmed sequence of functions that constantly control all motion parameters.


Electronic Control Technology Platforms
for the Mobile Equipment Market:

Vehicle Control Systems
(most complex, highest cost and value)

Vehicle Control Subsystems
(higher complexity, cost and value)
Transmission Controller

Digital Control Products
(intermediate complexity, cost and value)
Digital Signal Processor
PID Controller
Motor Controller
Pump Controller
Closed Loop Flow Controller
Fan Drive (with Sensor Input)

Analog Control Products
(least complex, lowest cost and value)


Soft Shift

Soft Shift/Hold

Low Cost
Fan Drive


Controller with
Position Feedback
(Servo Mechanism)
