Description
HFR10-32F is a screw-in, cartridge style, fixed orifice, pressure compensated, bi-directional flow regulating valve (restrictive type).
Operation

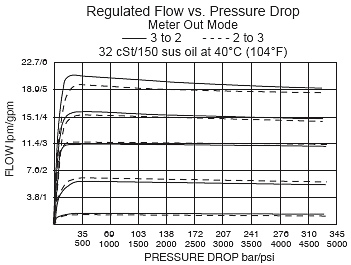

The valve maintains constant flow rate regardless of pressure drop across the valve and regardless of flow direction: from port 2 to port 3 or from port 3 to port 2. Port 1 should be blocked.
Features
- Excellent linearity and hysteresis.
- Industry-common cavity.
- All HyPerformance products are tested to the rigorous standards of the NFPA specification T2.6.1.
- All HyPerformance valves are tested at a verification level of 90% and an assurance of 99%.
